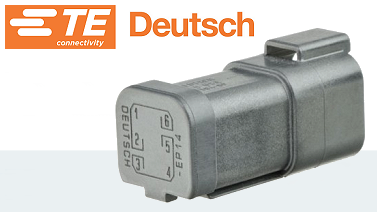

DT Bussed Connectors
The innovative DEUTSCH DT series bussed connector range by TE Connectivity. Specifically engineered to provide a highly streamlined, reliable method for distributing power or ground across multiple circuits within a single environmentally sealed housing, these advanced connectors function as an integrated splice hub. At Red2Go, we stock an extensive online inventory of professional-grade terminating components and heavy-duty multi-pin kits to streamline your vehicle outfitting from start to finish. Equip your field fleet with wiring components built to last, browse our full online range of genuine DEUTSCH bussed connectors today, and enjoy fast, reliable delivery across Australia.
.png)
.png)
Integrated Bus Bar Engineering and Harness Organisation

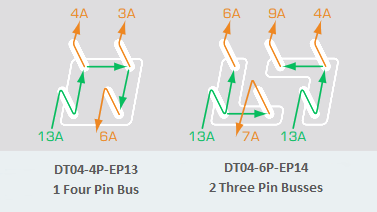

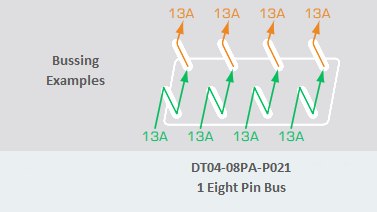

Deutsch DT Series bussed connectors provide a streamlined, reliable method for distributing power or ground across multiple circuits within a single environmentally sealed housing. Designed for demanding applications, they eliminate the need for external splices and deliver long‑term durability in environments exposed to vibration, moisture, and contaminants. Standard Deutsch DT connectors pair each pin on a 1:1 basis, but bussed connectors take a different approach. Inside the housing, internal bus bars link multiple terminals together, allowing a single input to feed several outputs. This makes them ideal for distributing power, ground, or common signals across multiple circuits. These connectors function as an integrated splice hub, replacing external splices, solder joints, and bulky junction blocks. Their internal interconnection system uses a solid bus bar to link designated pins; for example, a 1×6 configuration connects all six pins internally. Some models include multiple isolated buses, such as a 2×6 layout that allows both power and ground distribution within the same connector. Built with the proven durability of the DT series, they maintain exceptional sealing performance and withstand harsh environmental conditions. Bussed connectors create cleaner, more organised wiring harnesses by removing the clutter of external splices. They simplify assembly, reduce labour time, and improve serviceability by allowing technicians to disconnect and test circuits without cutting into the harness. Their sealed design ensures superior protection against water, mud, chemicals, and vibration, making them a dependable choice for long‑term performance. These connectors are widely used in industries where reliability is essential. In automotive and motorsports environments, they support power distribution for sensors, lighting, ECUs, and auxiliary systems, performing exceptionally well under heat, vibration, and debris. Heavy equipment manufacturers such as Caterpillar and John Deere rely on them for engine harnesses, chassis wiring, and power‑distribution modules. Marine, off‑road, and powersports applications also benefit from their ability to withstand saltwater, mud, pressure washing, and shock loads, making them ideal for boats, UTVs, ATVs, and off‑road lighting systems.
Frequently Asked Questions
What is the main difference between a standard DEUTSCH DT connector and a bussed connector?
A standard DEUTSCH DT connector passes independent circuits through its housing on a strict 1:1 basis, meaning Pin 1 only connects to Pin 1. A DEUTSCH bussed connector contains an internal solid metal bus bar that links multiple designated pins together inside the shell, allowing you to feed a single power or ground wire into the plug and have it automatically distribute out through multiple pins to feed several accessories at once.
Can I run both positive power and negative ground through the same bussed connector?
Yes, if you select a dual-bus configuration such as our specialized 2×6 model layout. This architecture features two completely separate, electrically isolated internal bus bars inside the unified housing, allowing you to safely allocate one side of the plug for clean positive power distribution and the matching side for a common negative ground network without any risk of short-circuiting.
How do these integrated splice hubs improve vehicle serviceability?
Traditional wire splices are wrapped inside harness tape or buried under heat shrink, meaning technicians must physically cut open the protective loom to test, modify, or diagnose an electrical issue. DEUTSCH bussed connectors act as a centralised, accessible terminal hub, allowing a mechanic to easily back-probe individual pins or unplug the entire module for rapid diagnostic testing without altering the harness structure.
Are DEUTSCH bussed plugs compatible with Caterpillar and John Deere wiring?
Absolutely, our genuine TE Connectivity DEUTSCH bussed connectors are manufactured to the identical rigorous heavy-machinery standards utilised by elite global brands like Caterpillar and John Deere. Their advanced thermoplastic construction and silicone seals are explicitly built to handle the intense engine block heat, heavy mechanical vibrations, and thick grease typical of commercial earthmoving and agricultural equipment.
