BBC-24 Bus Bar 300A Suits 2x DT06-12SA
BBC-24
$212.95
In Stock
Notify me when back in stock

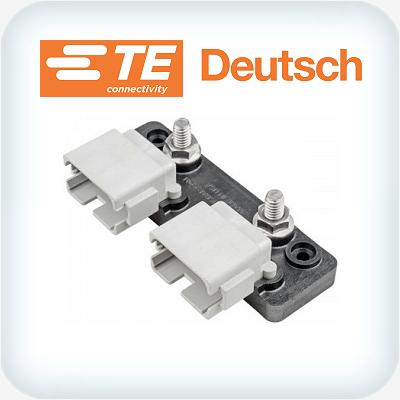

BBC-24 Bus Bar 300A Suits 2x DT06-12SA
Two common 12 pin sealed bus bars rated total 300A @ 48V. Made in North America using genuine TE DEUTSCH connectors.
All pin contacts are #16 solid nickel plate copper alloy rated to 13A per pin
Features
- Environmentally sealed to IP68 IP6K9K when installed and mated to manufacturer's specifications
- Maintenance free plug and play design
- Ignition protection to SAE J1171
- Stainless steel stud 5/16" (suits lugs with M8 stud palm)
BBC-24 Dimensions
(BBC-24)
| Sealed Bus Bars | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Bus | TC1100 Electrolytic Copper |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Insulation Resistance @ 25°C | 1000 m |
| Base | RETPU - Injection Moulded |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | BBC-24 |
| Brand | Deutsch |
