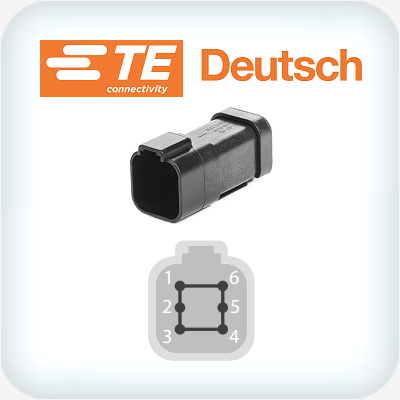

DT04-6P-EP13 6 Pin Bussed Receptacle 6=39A
DT04-6P-EP13
$13.13
In Stock
Notify me when back in stock
DT04-6P-EP13 6 Pin Bussed Receptacle 6=39A
DT bussed receptacles designed for use in heavy duty applications where multiple circuits require a common electrical pathway
Features
- Integrated Nickel Plated Copper Alloy Bus
- Solid #16 Nickel Plated Copper Alloy Contacts
- Sealed to IP68 (When all cavities are populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
- Flame Tested to UL-94
| Number of Contacts |
DT Bussed Receptacles | ||
| D | E | F | |
| 2 | 46.18mm | 17.02mm | 17.15mm |
| 4 | 47.45mm | 19.71mm | 20.83mm |
| 6 | 47.19mm | 24.16mm | 20.83mm |
| 8 | 46.94mm | 23.88mm | 36.45mm |
| 12 | 51.89mm | 22.25mm | 40.56mm |
(DT04-6P-EP13)
| Deutsch DT Series Bussed Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT04-6P-EP13 |
| Brand | Deutsch |
