DT3-1-E008 Kit HSA 3 Way 1.0-2.0mm² Ni Plated Contacts
DT3-1-E008
$13.91
In Stock
Notify me when back in stock

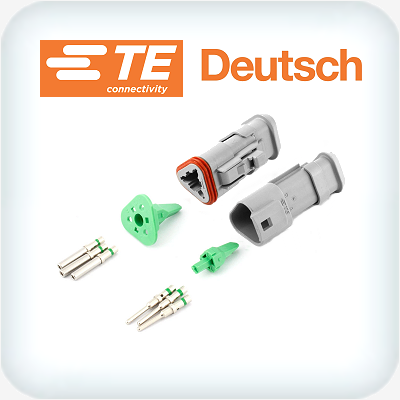

DT3-1-E008 Kit with Heat Shrink Adaptors 3 Way 1.0-2.0mm² Ni Plated Contacts
- Contact current rating 13A
- Conductor area 1.0 to 2.0mm²
- Recommended insulation strip 6.4 to 8mm
- Wire insulation outside diameter range for effective rear seal 2.23 to 3.68mm
Kit Contents
| Housing | Wedge | Contacts |
1x Receptacle DT04-3P-E008 |
1x W3P |
3x Nickel Plated Pin 0460-215-16141 |
| 1x Plug DT06-3S-E008 |
1x W3S-P012 |
3x Nickel Plated Socket 0462-209-16141 |
Receptacle Optional Accessories
| Cavity Plug & Mount Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT Receptacle Mount Plastic M5 Fits All Except 8 Way PN 1011-026-0205 |
| DT Receptacle Mount Stainless M11 Fits All Except 8 Way PN 1027-003-1200 |
| DT Receptacle Mount Stainless M13 Fits All Except 8 Way PN 1027-005-1200 |
| DT Receptacle Side Mount Zinc M11 Fits All Except 8 Way PN 1027-008-1200 |
| DT Receptacle Side Mount Zinc M13 Fits All Except 8 Way PN 1027-009-1200 |
Plug Optional Accessories
| Cavity Plug & Dust Cover Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT06-3S Thermoplastic Latched Dust Cover M5 Lug PN 1011-345-0305 |
Cable Links
| Automotive Single Core Cable To Suit |
Single Core 16/0.30 1.13mm² 20A OD 2.38mm PN AS11603  |
| Single Core 26/0.30 1.84mm² 28A OD 2.70mm PN AS12603 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 40.92mm | 15.77mm | 15.01mm | 57.18mm | 17.02mm | 17.15mm |
| 3 | 40.67mm | 24.60mm | 20.23mm | 55.40mm | 24.71mm | 21.13mm |
| 4 | 43.21mm | 19.74mm | 20.83mm | 48.32mm | 19.71mm | 20.83mm |
| 6 | 43.21mm | 24.03mm | 20.68mm | 58.19mm | 24.16mm | 20.83mm |
| 8 | 44.25mm | 22.15mm | 37.21mm | 59.00mm | 23.88mm | 36.45mm |
| 12 | 43.21mm | 20.83mm | 40.56mm | 56.29mm | 22.25mm | 40.56mm |
(DT3-1-E008)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT3-1-E008 |
| Brand | Deutsch |
