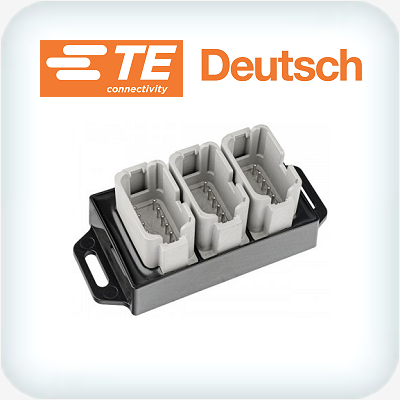

Bus Hub 3x 12 Pin Receptacles (DT04-12PA)
CONNKIT-3X12
$162.67
In Stock
Notify me when back in stock
Bus Hub 3x 12 Pin Receptacles (DT04-12PA)
Pin contact numbers are common in each receptacle, ie all pin "1" contacts are bussed
Designed and manufactured by IONNIC Australia using genuine TE DEUTSCH components
Features
- Epoxy filled ABS housing
- Environmentally sealed
- Compact design
- Current per circuit 10A maximum
- Operating temperature -40°C to 85°C

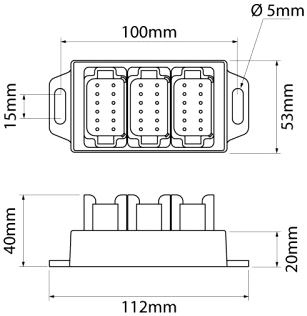

CONNKIT-3X12 Dimensions
(CONNKIT-3X12)
SKU | CONNKIT-3X12 |
Brand | Ionnic |
