DTP2-4 Kit 2 Way 2 to 3mm² Au Plated Contacts
DTP2-4
$31.54
In Stock
Notify me when back in stock

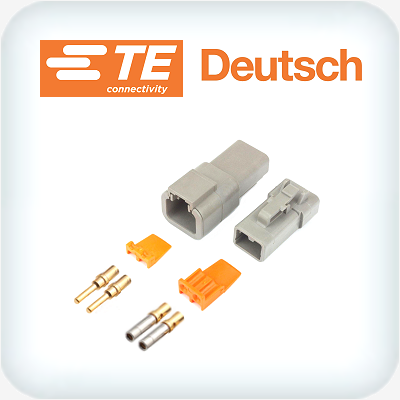

Deutsch DTP Series 2 way plug and receptacle complete with wedges and 2.08 to 3.31mm² crimp contacts
Features
- Contact current rating 25A
- Conductor area 2.08 to 3.31mm²
- Recommended insulation strip 5.6 to 7.2mm
- Wire insulation outside diameter range for effective rear seal 3.40 to 4.32mm
Kit Contents
| Housing | Wedge | Contacts |
1x Receptacle DTP04-2P |
1x WP-2P |
2x Gold Plated Pin 0460-220-1231 |
| 1x Plug DTP06-2S |
1x WP-2S |
2x Gold Plated Socket 0462-210-1231 |
Receptacle Optional Accessories
| Cavity Plug, Boot, & Mounting Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DTP04-2P Receptacle Boot Plastisol Grey 84mm PN DTP2P-BT |
| DT Receptacle Mount Plastic M5 Fits All Except 8 Way PN 1011-026-0205 |
| DT Receptacle Mount Stainless M11 Fits All Except 8 Way PN 1027-003-1200 |
| DT Receptacle Mount Stainless M13 Fits All Except 8 Way PN 1027-005-1200 |
| DT Receptacle Side Mount Zinc M11 Fits All Except 8 Way PN 1027-008-1200 |
| DT Receptacle Side Mount Zinc M13 Fits All Except 8 Way PN 1027-009-1200 |
Plug Optional Accessories
| Cavity Plug, Boot Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DTP06-2S Plug Boot Plastisol Grey 84mm PN DTP2S-BT |
Cable Links
| Automotive Single Core & Twin Cable To Suit |
Single Core 41/0.30 2.90mm² 37A OD 2.38mm PN AS14103  |
| Twin Core 41/0.30 2.90mm² 29A Core OD 2.38mm Sheath 4.6x8.0mm PN ATS24103 |
Dimensions
| Number of Contacts |
DTP Plug | DTP Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 34.65mm | 18.06mm | 18.59mm | 47.27mm | 22.07mm | 18.59mm |
| 4 | 34.65mm | 24.38mm | 22.05mm | 47.27mm | 27.15mm | 22.05mm |
(DTP2-4)
| Deutsch DTP Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 25A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Millivolt Drop @ 25A | ≤100mV |
| SKU | DTP2-4 |
| Brand | Deutsch |
