Automotive Twin 5.0mm² 30m Rolls

ATS24103

$67.50
In Stock


Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50

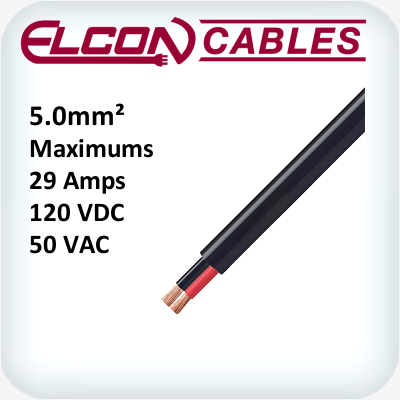

Product: Automotive Twin Core Cable 5.0mm² 30m Reel, Rated to 29A.

Applications: Conductor for automotive electrical, radio DC power supply, trailer wiring and LV DC garden lighting applications.

General:

  • 99.9% Oxygen Free High Conductivity (OFHC) Copper
  • Plain annealed copper conductors (PCW) to AS/NZS1125
  • Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
  • Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
  • UV Stabilised
  • ROHS Compliant

 Automotive Single Core Dimensions

Part No.

No.Strands/
Strand mm²

Nominal Area
mm²

Industry Equiv
mm²

Max Current
Amb @ +30°C

Insulation Wall Thickness mm Max DC Res
@+20°C m
Ω/mt
Nom OD mm

Mass Kg/100m

ATS21603 16/0.30 1.13 3.0 16A 0.45 16.50 3.40x6.8 4.09
ATS22603 26/0.30 1.84 4.0 22A 0.55 10.15 3.90x6.6 5.70
ATS24103 41/0.30 2.90 5.0 29A 0.65 6.43 4.60x8.0 8.40
ATS26503 65/0.30 4.59 6.0 40A 0.75 4.06 5.50x9.3 12.56

Also available to order in 100m and 500m reels
Email Steve or telephone 1800 733 246 Red2Go

(ATS24103)


  • 99.9% Oxygen Free High Conductivity (OFHC) Copper
  • Plain annealed copper conductors (PCW) to AS/NZS1125
  • Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
  • Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
  • UV Stabilised
  • ROHS Compliant
SKU ATS24103
Brand Elcon
