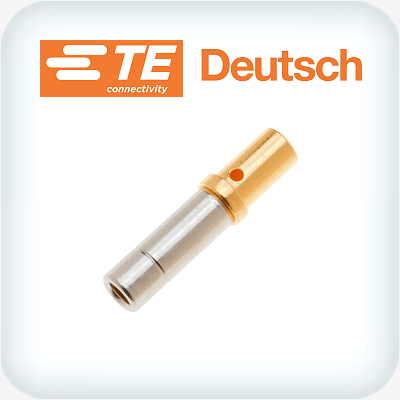

DTP & DTHD Socket #12 2.0 to 3.0mm² Au Plated
0462-210-1231
$7.87
In Stock
Notify me when back in stock
DTP & DTHD Pin #12 2.0 to 3.0mm² Gold and Nickel Plated Copper Alloy
- Contact current rating 25A
- Conductor area 2.0 to 3.0mm²
- Radial crimp type #12
- Recommended insulation strip 5.6 to 7.2mm
- Wire insulation outside diameter range for effective rear seal 3.40 to 4.32mm
(0462-210-1231)
| Deutsch DTP & DTHD Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au & Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 25A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 25A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Millivolt Drop @ 25A | ≤100mV |
| SKU | 0462-210-1231 |
| Brand | Deutsch |
