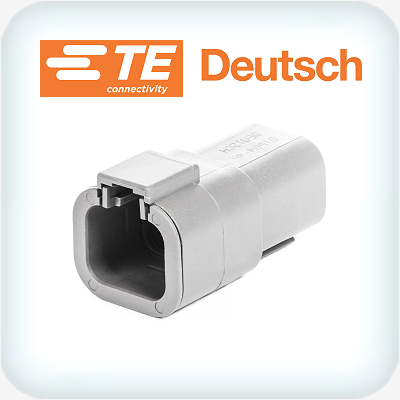

DTP04-4P 4 Way Receptacle Housing
DTP04-4P
$7.78
In Stock
Notify me when back in stock
Deutsch DTP Series 4 way receptacle housing only - Wedge and contacts not included
Required
| Quantity | Contact Options |
| 4 | DTP & DTHD Pin Contact #12 2.08 to 3.31mm² Nickel Plated PN 0460-204-12141 |
| DTP & DTHD Pin Contact #12 2.08 to 3.31mm² Gold Plated PN 0460-202-16131 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge |
| 1 | 4 Way Receptacle Orange Wedge PN WP-4P |
Optional Accessories
| Boot, & Mount Options |
| DTP04-4P Receptacle Boot Plastisol Grey 84mm PN DTP4P-BT |
| DT Receptacle Mount Plastic M5 Fits All Except 8 Way PN 1011-026-0205 |
| DT Receptacle Mount Stainless M11 Fits All Except 8 Way PN 1027-003-1200 |
| DT Receptacle Mount Stainless M13 Fits All Except 8 Way PN 1027-005-1200 |
| DT Receptacle Side Mount Zinc M11 Fits All Except 8 Way PN 1027-008-1200 |
| DT Receptacle Side Mount Zinc M13 Fits All Except 8 Way PN 1027-009-1200 |
| Tools |
| #12 Machined Contact Crimp Tool PN DET12 |
Dimensions
| Number of Contacts |
DTP Plug | DTP Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 34.65mm | 18.06mm | 18.59mm | 47.27mm | 22.07mm | 18.59mm |
| 4 | 34.65mm | 24.38mm | 22.05mm | 47.27mm | 27.15mm | 22.05mm |
(DTP04-4P)
| Deutsch DTP Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au or Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 25A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Millivolt Drop @ 25A | ≤100mV |
| SKU | DTP04-4P |
| Brand | Deutsch |
