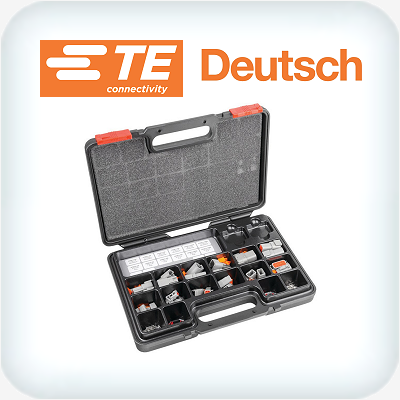

DTMKIT-1 Kit DTM Ni Plated Solid Contacts
DTMKIT-1
$308.24
In Stock
Notify me when back in stock
DTMKIT-1 Kit Standard DTM Series Ni Plated Solid Contacts
- Contact current rating 7.5A
- Conductor area 0.2 to 0.5mm²
- Recommended insulation strip 4 to 5.5mm
- Wire insulation outside diameter range for effective rear seal 1.35 to 3.05mm
Kit Contents:
| Recepticles | Wedges | Plugs | Wedges | Contacts & Cavity Plugs |
4x DTM04-2P |
4x WM-2P |
4x DTM06-2S |
4x WM-2S |
20x Cavity Plug 0413-204-2005 |
| 4x DTM04-3P |
4x WM-3P |
4x DTM06-3S |
4x WM-3S |
50x Solid Pin 0460-202-20141 |
| 4x DTM04-4P |
4x WM-4P |
4x DTM06-4S |
4x WM-4S |
50x Solid Socket 0462-201-20141 |
| 2x DTM04-6P |
2x WM-6P |
2x DTM06-6S |
2x WM-6S |
|
| 2x DTM-04-08PA |
2x WM-8P |
2x DTM06-08SA |
2x WM-8S |
|
| 2x DTM-04-12PA |
2x WM-12P |
2x DTM06-12SA |
2x WM-12S |
(DTMKIT-1)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Flame Test | 20mm Flame UL-94 |
| Current Rating #20 Pin | 7.5A @ 125°C |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 30N |
| Insulation Resistance @ 25°C | 1000 M ohm |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| SKU | DTMKIT-1 |
| Brand | Deutsch |
