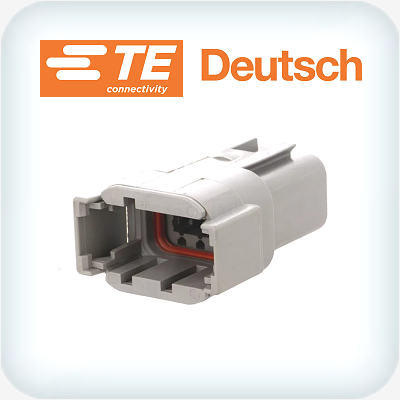

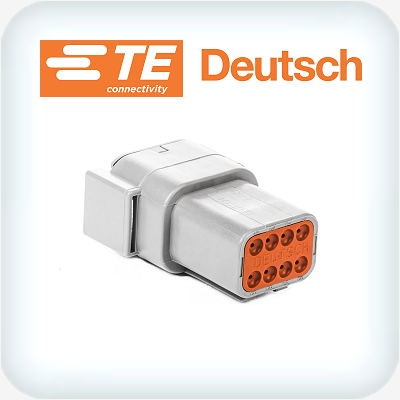

DTM04-08PA 8 Way Receptacle Housing
DTM04-08PA
$5.42
In Stock
Notify me when back in stock
DTM04-08PA 8 Way Receptacle Housing
- Wire insulation outside diameter range for effective rear seal 1.35 to 3.05mm
- Sealed to IP68 (When all cavities are populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
Required
| Quantity | Contact Options |
| 8 | DTM Pin Contact #20 0.2 to 0.5mm² Nickel Plated PN 0460-202-20141 |
| DTM Pin Contact #20 0.2 to 0.5mm² Gold Plated PN 0460-202-2031 |
|
| DTM Pin Contact #20 0.75 to 1.3mm² Nickel Plated PN 0460-010-20141 |
|
| DTM Pin Contact #20 0.75 to 1.3mm² Gold Plated PN 0460-010-2031 |
|
| If required | DTM Series Cavity Plug PN 0413-204-2005 |
| Quantity | Wedge Options |
| 1 | 8 Way Receptacle Orange Wedge PN WM-8P |
Optional Accessories
| Boot & Mounting Options |
| DTM04-08PA Plastisol Boot L 66mm Max. Cable Diameter 8.31mm PN DTM8P-BT |
| DT Receptacle Mount Plastic M5 Fits 8 Way Only PN 1011-027-0805 |
| DT Receptacle Mount Stainless M11 Fits 8 Way Only PN 1027-001-0800 |
Dimensions
| Number of Contacts |
DTM Plug | DTM Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 27.56mm | 12.90mm | 12.07mm | 41.15mm | 16.21mm | 16.54mm |
| 3 | 27.56mm | 14.00mm | 16.26mm | 41.15mm | 16.21mm | 20.73mm |
| 4 | 30.10mm | 17.65mm | 15.24mm | 43.69mm | 19.61mm | 19.20mm |
| 6 | 30.10mm | 20.75mm | 15.24mm | 43.69mm | 23.80mm | 19.20mm |
| 8 | 30.10mm | 15.24mm | 31.62mm | 43.69mm | 22.22mm | 31.62mm |
| 12 | 30.10mm | 15.24mm | 40.01mm | 43.69mm | 22.22mm | 40.01mm |
(DTM04-08PA)
| Deutsch DTM Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Flame Test | 20mm Flame UL-94 |
| Current Rating #20 Pin | 7.5A @ 125°C |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 30N |
| Insulation Resistance @ 25°C | 1000 M ohm |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| SKU | DTM04-08PA |
| Brand | Deutsch |
