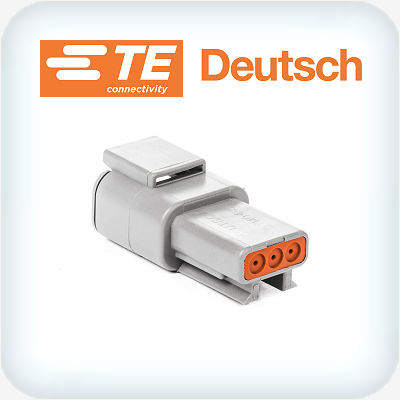

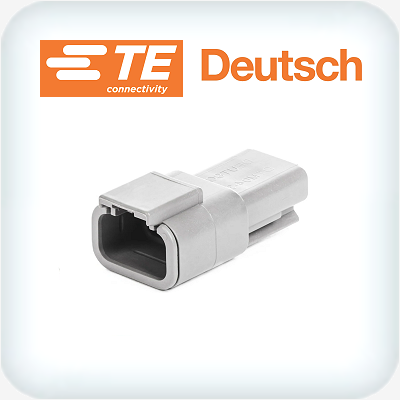

DTM04-3P 3 Way Receptacle Housing
DTM04-3P
$4.19
In Stock
Notify me when back in stock
DTM04-3P 3 Way Receptacle Housing
(DTM04-3P)
| Deutsch DTM Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Flame Test | 20mm Flame UL-94 |
| Current Rating #20 Pin | 7.5A @ 125°C |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 30N |
| Insulation Resistance @ 25°C | 1000 M ohm |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| SKU | DTM04-3P |
| Brand | Deutsch |
