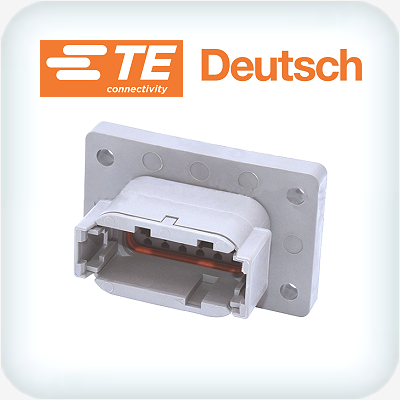

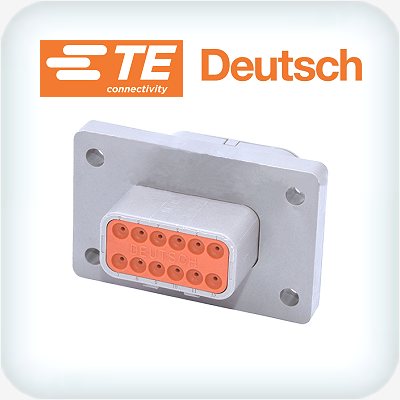

DTM04-12PA-L012 12 Way Flanged Receptacle Housing A Key
DTM04-12PA-L012
$16.23
In Stock
Notify me when back in stock
DTM04-12PA-L012 12 Way Flanged Receptacle Housing A Key
- Wire insulation outside diameter range for effective rear seal 1.35 to 3.05mm
- Sealed to IP68 (When all cavities are populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
Required
| Quantity | Contact Options |
| 12 | DTM Pin Contact #20 0.2 to 0.5mm² Nickel Plated PN 0460-202-20141 |
| DTM Pin Contact #20 0.2 to 0.5mm² Gold Plated PN 0460-202-2031 |
|
| DTM Pin Contact #20 0.75 to 1.3mm² Nickel Plated PN 0460-010-20141 |
|
| DTM Pin Contact #20 0.75 to 1.3mm² Gold Plated PN 0460-010-2031 |
|
| If required | DTM Series Cavity Plug PN 0413-204-2005 |
| Quantity | Wedge Options |
| 1 | 12 Way Receptacle Orange Wedge PN WM-12P |
Dimensions
(DTM04-12PA-L012)
| Deutsch DTM Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Flame Test | 20mm Flame UL-94 |
| Current Rating #20 Pin | 7.5A @ 125°C |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 30N |
| Insulation Resistance @ 25°C | 1000 M ohm |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| SKU | DTM04-12PA-L012 |
| Brand | Deutsch |
