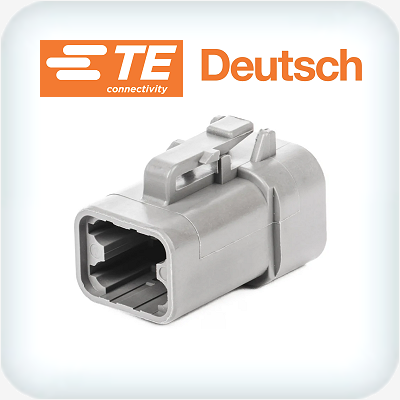

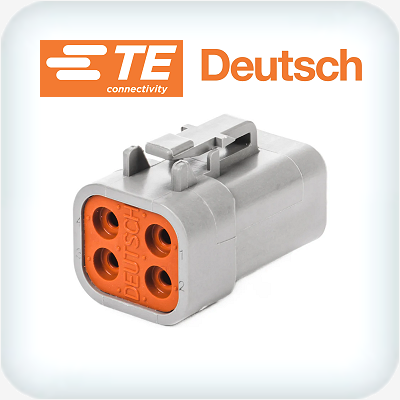

DTP06-4S 4 Way Plug Housing
DTP06-4S
$5.78
In Stock
Notify me when back in stock
Deutsch DTP Series 4 way plug housing only - Wedge and contacts not included
Required
| Quantity | Contact Options |
| 4 | DTP & DTHD Socket Contact #12 2.08 to 3.31mm² Nickel Plated PN 0462-203-12141 |
| DTP & DTHD Socket Contact #12 2.08 to 3.31mm² Gold Plated PN 0462-210-1231 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge |
| 1 | 4 Way Plug Orange Wedge PN WP-4S |
Optional Accessories
| Boot |
| DTP06-4S Plug Boot Plastisol Grey 84mm PN DTP4S-BT |
Dimensions
| Number of Contacts |
DTP Plug | DTP Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 34.65mm | 18.06mm | 18.59mm | 47.27mm | 22.07mm | 18.59mm |
| 4 | 34.65mm | 24.38mm | 22.05mm | 47.27mm | 27.15mm | 22.05mm |
(DTP06-4S)
| Deutsch DTP Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 25A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Millivolt Drop @ 25A | ≤100mV |
| SKU | DTP06-4S |
| Brand | Deutsch |
