DTM2-J1939/15 120 Ohm Resistor Kit
DTM2-J1939-KIT
$17.82
In Stock
Notify me when back in stock
DTM2-J1939/15 120 Ohm Resistor Kit
- Contact current rating 7.5A
- Conductor area 0.2 to 0.5mm²
- Recomended insulation strip 4 to 5.5mm
- Wire insulation outside diameter range for effective rear seal 1.35 to 3.05mm

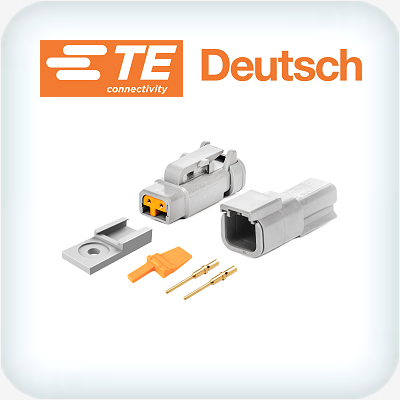

Kit Contents
| Receptacle | Wedge | Plug & Wedge 120 Ohm | Contacts | Mounting Clip |
| 1x DTM04-2P | 1x WM-2P | 1x DTM06-2S-P006 | 2x Gold Plated Pin 0460-202-2031 | 1x 1011-026-0205 |
Features
- Wire-to-Wire Connection
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
| Number of Contacts |
DTM Plug | DTM Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 27.56mm | 12.90mm | 12.07mm | 41.15mm | 16.21mm | 16.54mm |
(DTM2-J1939-KIT)
| SKU | DTM2-J1939-KIT |
| Brand | Deutsch |
