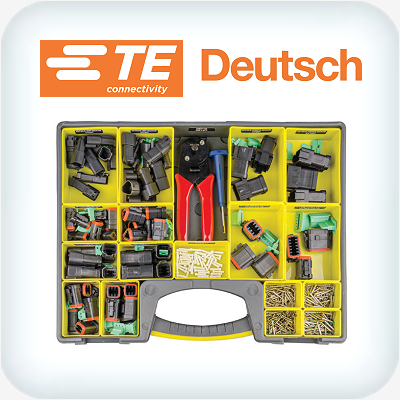

DTKIT-WSHOP-CAT 604 Piece Cat-Spec DT Kit & Tools Green Band Contacts
DTKIT-WSHOP-CAT
$859.46
In Stock
Notify me when back in stock
DTKIT-WSHOP-CAT 604 Piece Cat-Spec DT Kit & Tools Standard and Green Band Contacts
Kit Contents
| Recepticle Housings | Receptacle Wedges |
10x DT04-2P-E005 |
10x W2P |
| 10x DT04-3P-E005 |
10x W3P |
| 6x DT04-4P-E005 |
6x W4P |
| 6x DT04-6P-E005 |
6x W6P |
| 3x DT04-08PA-E005 |
3x W8P |
| 3x DT04-12PA-E005 |
3x W12P |
| Plug Housings | Plug Wedges |
| 10x DT06-2S-EP06 |
10x W2S-P012 |
| 10x DT06-3S-EP06 |
10x W3S-P012 |
| 6x DT06-4S-EP06 |
6x W4S-P012 |
| 6x DT06-6S-EP06 |
6x W6S-P012 |
| 3x DT06-08SA-EP08 |
3x W8S-P012 |
| 3x DT06-12SA-EP08 |
3x W12S-P012 |
| Contacts & Cavity Plugs | |
| 50x Cavity Plug Suits DT and DTP Series PN 114017 |
|
| 100x Solid Pin 1.0 to 2.0mm² Ni Plated Green Band PN 0460-215-16141 |
|
| 100x Solid Socket 1.0 to 2.0mm² Ni Plated Green Band PN 0462-209-16141 |
|
| 100x Solid Pin 0.5 to 1.0mm² Ni Plated PN 0460-202-16141 |
|
| 100x Solid Socket 0.5 to 1.0mm² Ni Plated PN 0462-201-16141 |
|
| Tools | |
| 1x Contact Removal Tool DET-RT |
|
| 1x Contact Crimp Tool DET16 |
|
(DTKIT-WSHOP-CAT)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DTKIT-WSHOP-CAT |
| Brand | Deutsch |
