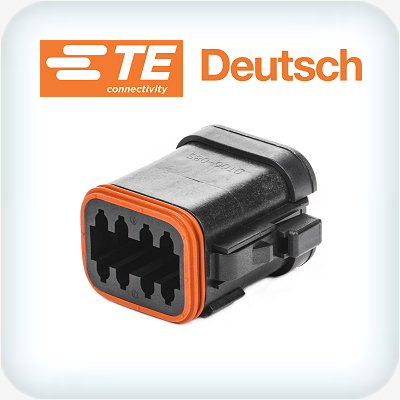

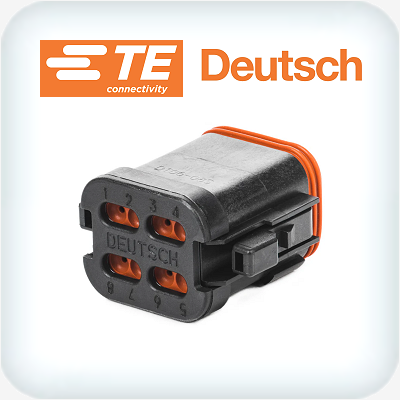

DT06-08SA-EP08 CAT Spec 8 Way Plug Housing
DT06-08SA-EP08
$6.06
In Stock
Notify me when back in stock
DT06-08SA-EP08 CAT Spec 8 Way Plug Housing
Required
| Quantity | Contact Options |
| 8 | DT Socket Contact #16 0.5 to 1.5mm² Nickel Plated PN 0462-201-16141 |
| DT Socket Contact #16 0.5 to 1.5mm² Gold & Nickel Plated PN 0462-201-16131 |
|
| DT Socket Contact #16 1.0 to 2.0mm² Nickel Plated PN 0462-209-16141 |
|
| DT Socket Contact #16 1.0 to 2.0mm² Gold & Nickel Plated PN 0462-201-16131 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge Options |
| 1 | 8 Way Plug Enhanced Seal Green Wedge PN W8S-P012 |
Optional Accessories
| Dust Cover |
| DT06-08SA Thermoplastic Latched Dust Cover M5 Lug PN 1011-348-0805 |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 31.19mm | 15.77mm | 15.01mm | 46.18mm | 17.02mm | 17.15mm |
| 3 | 29.92mm | 23.73mm | 18.37mm | 44.65mm | 24.71mm | 21.13mm |
| 4 | 32.46mm | 19.58mm | 20.83mm | 47.45mm | 19.71mm | 20.83mm |
| 6 | 32.21mm | 24.16mm | 20.83mm | 47.19mm | 24.16mm | 20.83mm |
| 8 | 37.21mm | 22.15mm | 37.21mm | 45.67mm | 23.88mm | 36.45mm |
| 12 | 32.21mm | 20.83mm | 40.56mm | 47.19mm | 22.25mm | 40.56mm |
(DT06-08SA-EP08)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au & Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT06-08SA-EP08 |
| Brand | Deutsch |
