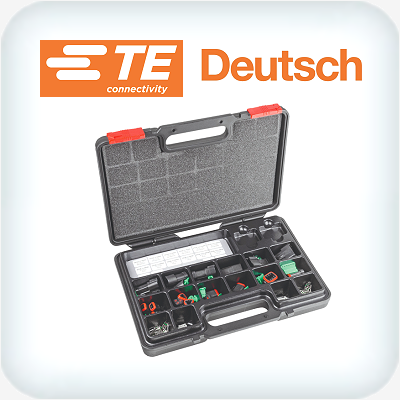

DTKIT-1-CAT 138 Piece Assortment Kit
DTKIT-1-CAT
$218.98
In Stock
Notify me when back in stock
DTKIT-1-CAT 138 Piece CAT-Spec DT Kit Green Band Contacts
Kit Contents
| Recepticle Housings | Receptacle Wedges |
3x DT04-2P-E005 |
3x W2P |
| 3x DT04-3P-E005 |
3x W3P |
| 2x DT04-4P-E005 |
2x W4P |
| 1x DT04-6P-E005 |
1x W6P |
| 1x DT04-08PA-E005 |
1x W8P |
| 1x DT04-12PA-E005 |
1x W12P |
| Plug Housings | Plug Wedges |
| 3x DT06-2S-EP06 |
3x W2S-P012 |
| 3x DT06-3S-EP06 |
3x W3S-P012 |
| 2x DT06-4S-EP06 |
2x W4S-P012 |
| 1x DT06-6S-EP06 |
1x W6S-P012 |
| 1x DT06-08SA-EP08 |
1x W8S-P012 |
| 1x DT06-12SA-EP08 |
1x W12S-P012 |
| Contacts & Cavity Plugs | |
| 12x Cavity Plug Suits DT and DTP Series PN 114017 |
|
| 40x Solid Pin 1.0 to 2.0mm² Ni Plated Green Band PN 0460-215-16141 |
|
| 40x Solid Socket 1.0 to 2.0mm² Ni Plated Green Band PN 0462-209-16141 |
|
(DTKIT-1-CAT)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DTKIT-1-CAT |
| Brand | Deutsch |
