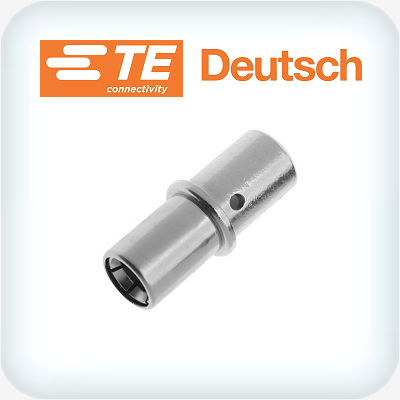

DTHD Socket #4 13.0mm² Ni Plated Contact 100A
0462-203-04141
$15.18
In Stock
Notify me when back in stock
0462-203-04141 DTHD Socket Contact #4 Nickel Plated Copper Alloy
- Contact current rating 100A
- Conductor area 13.0mm²
- Crimp type #4
- Recomended insulation strip 11.0 to 12.5mm
- Wire insulation outside diameter range for effective rear seal 6.63 to 10.67mm
(0462-203-04141)
| Deutsch DTHD #4 Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 100A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 100A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| SKU | 0462-203-04141 |
| Brand | Deutsch |
