DTHD12-1 Plug & Receptacle Kit 25A
DTHD012-1
$14.23
In Stock
Notify me when back in stock

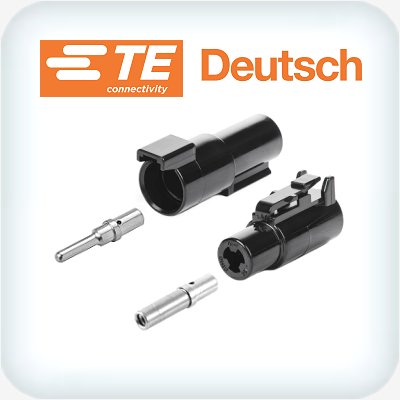

DTHD12-1 Plug & Receptacle Kit
- Contact current rating 25A
- Conductor area 2.0 to 3.0mm²
- Radial crimp type #12
- Recomended insulation strip 5.6 to 7.2mm
- Wire insulation outside diameter range for effective rear seal 3.40 to 4.32mm
Kit Contents
| Plug | Receptacle | Contacts |
| 1x DTHD06-1-12S | 1x DTHD04-1-12P | 1x Nickel Plated Pin 0460-204-12141 |
| 1x Nickel Plated Socket 0462-203-12141 |
Features
- Wire-to-Wire Connection
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
| Contact Size |
DTHD Plug | DTHD Receptacle | ||||
| A | B | C | D | E | F | |
| 12 | 38.05mm | 19.58mm | 14.48mm | 52.53mm | 21.59mm | 18.08mm |
| 8 | 38.05mm | 21.87mm | 16.76mm | 52.53mm | 23.88mm | 20.32mm |
| 4 | 38.05mm | 27.33mm | 22.23mm | 52.53mm | 29.72mm | 26.54mm |
(DTHD12-1)
| Deutsch DTP & DTHD Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 25A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 25A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Millivolt Drop @ 25A | ≤100mV |
| SKU | DTHD12-1 |
| Brand | Deutsch |
