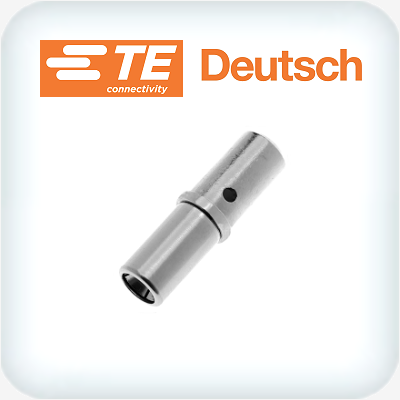

DTHD Socket #8 5.0 to 8.0mm² Ni Plated Contact 60A
0462-203-08141
$8.34
In Stock
Notify me when back in stock
0462-203-08141 DTHD Socket Contact #10-8 Nickel Plated Copper Alloy
- Contact current rating 60A
- Conductor area 5.0 to 8.0mm²
- Crimp type #8
- Recomended insulation strip 11.0 to 12.5mm
- Wire insulation outside diameter range for effective rear seal 4.83 to 6.09mm
(0462-203-08141)
| Deutsch DTHD #8 Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 60A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 60A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| SKU | 0462-203-08141 |
| Brand | Deutsch |
