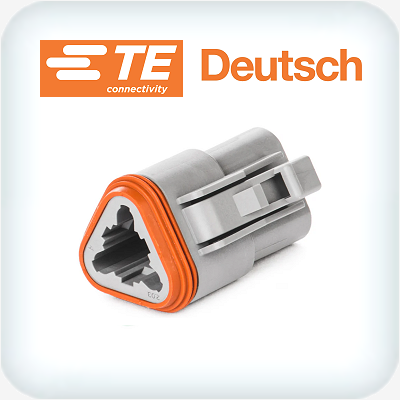

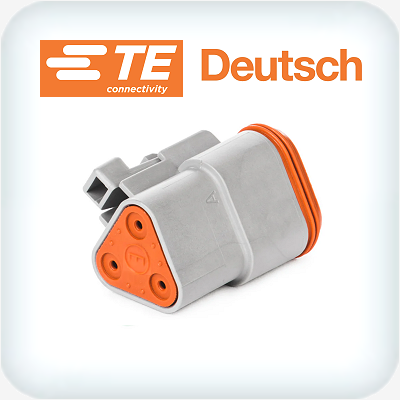

DT06-3S-C015 3 Way E Seal Plug Housing
DT06-3S-C015
$2.00
In Stock
Notify me when back in stock
DT06-3S-C015 3 Way E Seal Plug Housing
DT connectors with a "C015" suffix have an enhanced rear seal to take a smaller diameter wire insulation range of 1.35mm to 3.05mmØ compared to the standard seal range of 2.3mm to 3.6mmØ
Required
| Quantity | Contact Options |
| 3 | DT Socket Contact #16 0.5 to 1.0mm² Nickel Plated PN 0462-201-16141 |
| DT Socket Contact #16 0.5 to 1.0mm² Gold & Nickel Plated PN 0462-201-16131 |
|
| DT Socket Contact #16 1.0 to 2.0mm² Nickel Plated PN 0462-209-16141 |
|
| DT Socket Contact #16 1.0 to 2.0mm² Gold & Nickel Plated PN 0462-201-16131 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge Options |
| 1 | 3 Way Plug Enhanced Seal Green Wedge PN W3S-P012 |
| 3 Way Plug CAN J1939/11 3 Blue Wedge PN W3S-1939 |
|
| 3 Way Plug Enhanced Seel CAN J1939/11 3 Blue Wedge PN W3S-1939-P012 |
Optional Accessories
| Backshell, Boot, & Dust Cover Options |
| DT06-3S Plug Backshell Straight Suits NC8,10,&12 PN 1011-259-0305 |
| DT06-3S Plug Backshell 90° Suits NC8,10,&12 PN 1011-260-0305 |
| DT06-3S Plug Boot Plastisol Grey 65mm PN DT3S-BT |
| DT06-3S Plug Boot Plastisol Black 120mm PN DTB3S |
| DT06-3S Thermoplastic Latched Dust Cover M5 Lug PN 1011-345-0305 |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 28.4mm | 15.95mm | 15.01mm | 43.38mm | 17.02mm | 17.15mm |
| 3 | 28.4mm | 23.72mm | 18.23mm | 43.13mm | 24.71mm | 21.13mm |
| 4 | 30.94mm | 18.39mm | 18.19mm | 45.92mm | 19.71mm | 20.83mm |
| 6 | 30.94mm | 22.63mm | 18.19mm | 45.92mm | 24.16mm | 20.83mm |
| 8 | 30.91mm | 19.71mm | 37.21mm | 45.67mm | 25.40mm | 36.45mm |
| 12 | 30.94mm | 18.19mm | 40.56mm | 45.92mm | 22.25mm | 40.56mm |
(DT06-3S-C015)
| Deutsch DT C015 E Seal Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au or Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT06-3S-C015 |
| Brand | Deutsch |
