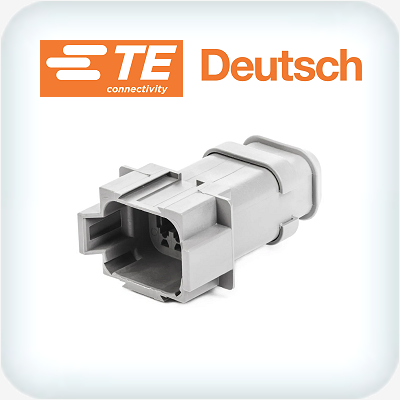

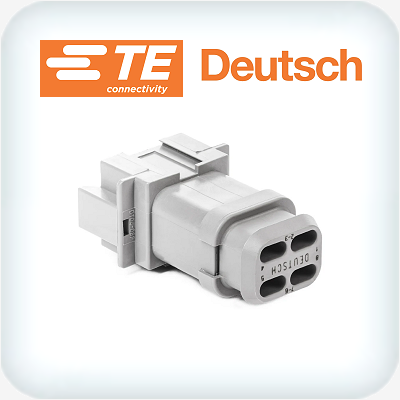

DT04-08PA-E008 8 Way Heat Shrink Receptacle Housing
DT04-08PA-E008
$7.62
In Stock
Notify me when back in stock
DT04-08PA-E008 8 Way Heat Shrink Receptacle Housing
DT connectors with a "E008" suffix have a housing designed for terminating adhesive lined heat shrink, see Radiform's RDW range
Required
| Quantity | Contact Options |
| 8 | DT Pin Contact #16 0.5 to 1.5mm² Nickel Plated PN 0460-202-16141 |
| DT Pin Contact #16 0.5 to 1.5mm² Gold Plated PN 0460-202-16131 |
|
| DT Pin Contact #16 1.0 to 2.0mm² Nickel Plated PN 0460-215-16141 |
|
| DT Pin Contact #16 1.0 to 2.0mm² Gold Plated PN 0460-215-1631 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge |
| 1 | 8 Way Receptacle Green Wedge PN W8P |
Optional Accessories
| Mounting Options |
| DT Receptacle Mount Plastic M5 Fits 8 Way Only PN 1011-027-0805 |
| DT Receptacle Mount Stainless M11 Fits 8 Way Only PN 1027-001-0800 |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 40.92mm | 15.77mm | 15.01mm | 57.18mm | 17.02mm | 17.15mm |
| 3 | 40.67mm | 24.60mm | 20.23mm | 55.40mm | 24.71mm | 21.13mm |
| 4 | 43.21mm | 19.74mm | 20.83mm | 48.32mm | 19.71mm | 20.83mm |
| 6 | 43.21mm | 24.03mm | 20.68mm | 58.19mm | 24.16mm | 20.83mm |
| 8 | 44.25mm | 22.15mm | 37.21mm | 59.00mm | 23.88mm | 36.45mm |
| 12 | 43.21mm | 20.83mm | 40.56mm | 56.29mm | 22.25mm | 40.56mm |
(DT04-08PA-E008)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au & Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT04-08PA-E008 |
| Brand | Deutsch |
