CAT Spec DT KIt 4 Way 1.0-2.0mm² Au Plated Contacts
DT4-4-CAT
$23.29
In Stock
Notify me when back in stock
CAT Spec DT KIt 4 Way 1.0-2.0mm² Au Plated Contacts
- Contact current rating 13A
- Conductor area 1.0 to 2.0mm²
- Recommended insulation strip 6.4 to 8mm
- Wire insulation outside diameter range for effective rear seal 2.23 to 3.68mm

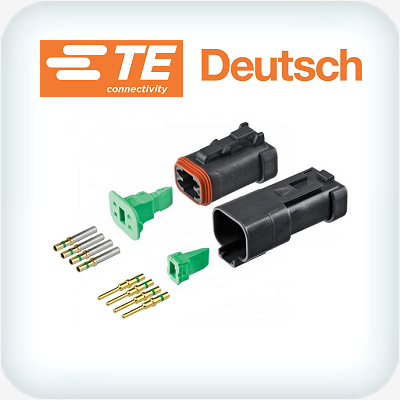

Kit Contents
| Housing | Wedge | Contacts |
1x Receptacle DT04-4P-E005 |
1x W4P |
4x Gold Plated Pin 0460-215-1631 |
| 1x Plug DT06-4S-EP06 |
1x W4S-P012 |
4x Gold Plated Socket 0462-209-1631 |
Receptacle Optional Accessories
| Cavity Plug, Dust Cap, & Mounting Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT04-4P 4 Way Receptacle Dust Cap Plastisol Grey PN DT4P-DC |
| DT Receptacle Mount Plastic M5 Fits All Except 8 Way PN 1011-026-0205 |
| DT Receptacle Mount Stainless M11 Fits All Except 8 Way PN 1027-003-1200 |
| DT Receptacle Mount Stainless M13 Fits All Except 8 Way PN 1027-005-1200 |
| DT Receptacle Side Mount Zinc M11 Fits All Except 8 Way PN 1027-008-1200 |
| DT Receptacle Side Mount Zinc M13 Fits All Except 8 Way PN 1027-009-1200 |
Plug Optional Accessories
| Cavity Plug & Dust Cover |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT06-4S Thermoplastic Latched Dust Cover M5 Lug PN 1011-346-0405 |
Cable Links
| Automotive Single Core Cable To Suit |
Single Core 16/0.30 1.13mm² 20A OD 2.38mm PN AS11603  |
| Single Core 26/0.30 1.84mm² 28A OD 2.70mm PN AS12603 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 31.19mm | 15.77mm | 15.01mm | 46.18mm | 17.02mm | 17.15mm |
| 3 | 29.92mm | 23.73mm | 18.37mm | 44.65mm | 24.71mm | 21.13mm |
| 4 | 32.46mm | 19.58mm | 20.83mm | 47.45mm | 19.71mm | 20.83mm |
| 6 | 32.21mm | 24.16mm | 20.83mm | 47.19mm | 24.16mm | 20.83mm |
| 8 | 37.21mm | 22.15mm | 37.21mm | 45.67mm | 23.88mm | 36.45mm |
| 12 | 32.21mm | 20.83mm | 40.56mm | 47.19mm | 22.25mm | 40.56mm |
(DT4-4-CAT)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT4-4-CAT |
| Brand | Deutsch |
