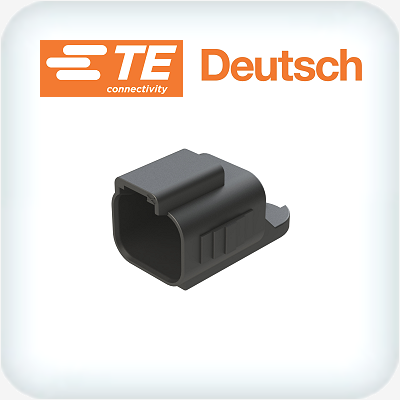

DT06-4S 4 Way Plug Thermoplastic Dust Cap
1011-346-0405
$3.01
In Stock
Notify me when back in stock
1011-346-0405 Dust Cap To Suit DT06-4S 4 Way Plug
Applications
Dust protection for standard DT Series plugs for temporary circuitry removal for maintenance or research and development of electrical components
Features
- Secure Latched Fitting

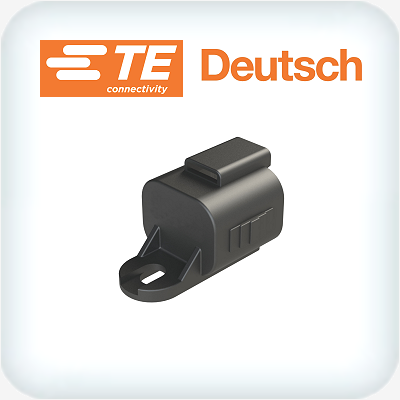

- M5 Lug For Permanent Mounting
- Dust Sealed to IP6
- Thermoplastic Body
- Operating Temperature of -55°C to +125°C
| Part No. | Suits | L | W | H |
| 1011-344-0205 | DT06-2S | 21.08mm | 17.15mm | 18.54mm |
| 1011-345-0305 | DT06-3S | 20.83mm | 24.02mm | 21.53mm |
| 1011-346-0405 | DT06-4S | 21.08mm | 20.83mm | 21.23mm |
| 1011-347-0605 | DT06-6S | 21.08mm | 20.83mm | 25.68mm |
| 1011-348-0805 | DT06-08SA | 22.10mm | 36.45mm | 24.38mm |
| 1011-349-1205 | DT06-12SA | 21.84mm | 40.56mm | 23.77mm |
(1011-346-0405)
| SKU | 1011-346-0405 |
| Brand | Deutsch |
