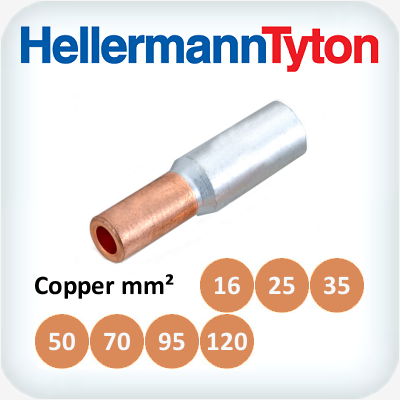

Bi Metal Link to suit 185mm² Aluminium to 16mm² Copper
BMK185-16
$65.30
In Stock
Notify me when back in stock
Bi Metal Link to suit Aluminium 185mm² to Copper 16, 25, 35, 50, 70 or 120mm²
Use Australian standard compression tooling only
| Part Number | Overall Length | Al Hex Die AF | Cu Hex Die AF |
|---|---|---|---|
| BMK185-16 | 120mm | 22.0mm | 6.3mm |
| BMK185-25 | 120mm | 22.0mm | 7.7mm |
| BMK185-35 | 120mm | 22.0mm | 9.2mm |
| BMK185-50 | 120mm | 22.0mm | 10.4mm |
| BMK185-70 | 120mm | 22.0mm | 11.5mm |
| BMK185-95 | 120mm | 22.0mm | 14.2mm |
| BMK185-120 | 120mm | 22.0mm | 16.5mm |
(BMK185)
| SKU | BMK185 |
| Brand | HellermannTyton |
