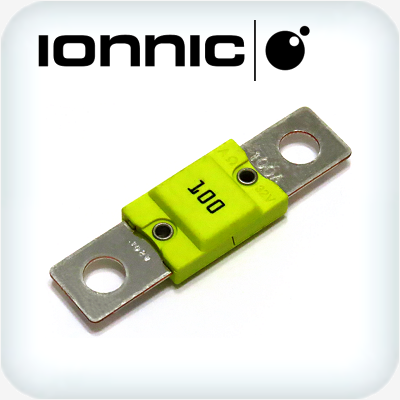

AMG Mega Bolt In Fuse Current:100A
AMG100
$9.60
In Stock
Shipping
Free Delivery Australia wide for all orders - Minimum invoice value $50
Notify me when back in stock
AMG Mega Bolt In Fuses 100A to 300A
- Maximumum voltage 32VDC
- Interupting rating: 1,000A @ 32VDC
- Terminal material: Copper
- Housing Material: UL 94V-0 thermoplastic

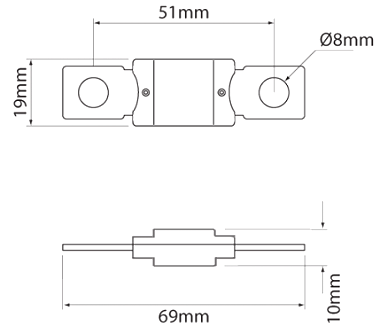

Dimensions mm
(AMG-Fuse)
| AMG Open Circuit - time / current characteristics | ||||||||
| Test Current | 100A~300A | |||||||
| Min | Max | |||||||
| 100% | 100hrs | ---- | ||||||
| 135% | 120s | 1800s | ||||||
| 200% | 1.0s | 30s | ||||||
| 350% | 0.1s | 5s | ||||||
| 600% | 0.04s | 0.5s | ||||||
Note: Performance may vary due to environmental conditions
| SKU | AMG-Fuse |
| Brand | Bussmann |
