AMI Midi Bolt In Fuse Current: 30A
AMI30
$3.96
In Stock
Shipping
Free Delivery Australia wide for all orders - Minimum invoice value $50
Notify me when back in stock
AMI Midi Bolt In Fuses 30A to 200A
- Maximumum voltage 32VDC
- Interupting rating: 2,000A @ 32VDC
- Terminal material: Tin plated brass
- Housing Material: UL 94V-0 thermoplastic

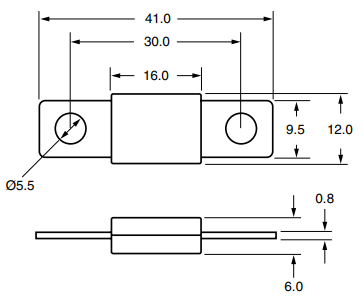

Dimensions mm
(AMI-Fuse)
| AMI Open Circuit - time / current characteristics | ||||||||
| Test Current | 30A~200A | |||||||
| Min | Max | |||||||
| 100% | 100hrs | ---- | ||||||
| 150% | 90s | 3600s | ||||||
| 200% | 5s | 100s | ||||||
| 300% | 0.3s | 10s | ||||||
| 500% | 0.1s | 1.0s | ||||||
Note: Performance may vary due to environmental conditions
| SKU | AMI-Fuse |
| Brand | Bussmann |
