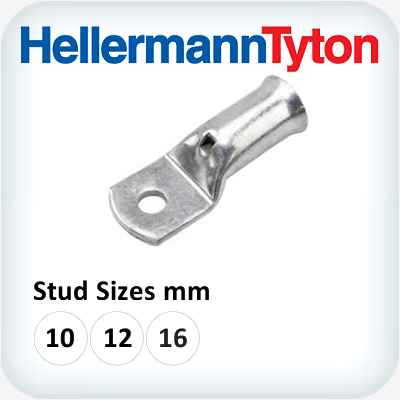

240mm² Bell Mouth Copper Lug M10 Stud
CL240-10BM
$20.16
In Stock
Notify me when back in stock
Copper Compression Lug Bell Mouth 240mm²
Features
- Copper Grade C11000
- 99.9% Copper Annealed and Tinned
- Maximum Oxygen Content 30ppm
- Operating Temperature Range -55°C to +155°C
- Terminate with Australian standard compression tooling only
| 240mm² Copper Lugs Bell Mouth - All Dimensions mm | |||||||||
| Part No. | Stud | Ent ID | Palm W | Barrel L | Overall L | ||||
| CL240-10BM | M10 | 21.2 | 41 | 38 | 92 | ||||
| CL240-12BM | M12 | 21.2 | 41 | 38 | 92 | ||||
| CL240-16BM | M16 | 21.2 | 41 | 38 | 92 | ||||
(CL240BM)
| Material | Property | |||||
| Copper |
99.9% Pure Copper | |||||
| Oxygen 30ppm Maximum | ||||||
| Tensile Strength 205Mpa Minimum | ||||||
| Ductile Rating 40% | ||||||
| Final Metal State Fully Annealed | ||||||
| Electroplating | 99.9% Pure Tin (Other Lead & Antimony) | |||||
| Performance | Conformant Standard AS/NZS4325 Part 1 :1995 | |||||
| Conductivity | Total Conductivity 99.9% IACS | |||||
| Resistance | Total Resistance 1.72 micro-ohms per cm | |||||
| SKU | CL240BM |
| Brand | Hellermann Tyton |
