Snap In Bushing 10mm Cable to 6.4mm OD Pk100

SB10-100

$11.45
In Stock


Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50

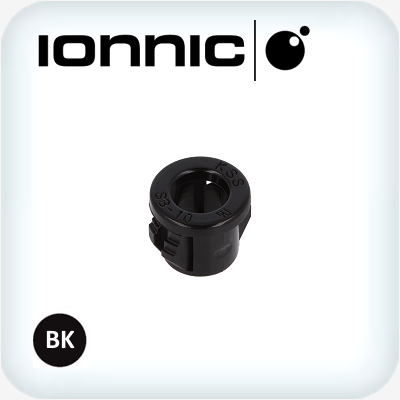

Snap In Bushing 10mm Cable to 6.4mm OD Pack of 100

Description:
The SB series bushes for electrical cable and wire protection. The one piece design is easy to install and moulded from 94V-2 UL approved nylon 6/6.

Features:

  • Flammability of raw material : UL 94 - V2
  • Installation temperature: -10°C / +85°C
  • Working temperature: -40°C / +85°C
  • Max sustainable temperature for short time: +110°C
  • Good resistance to bases, oils, greases, oil derivates, chloride solvents. Limited resistance to acids. Not resistant to phenols.

RG1 Series Dimensions
Part Number A Cable Ø B Cutout Ø C D
SB08-100 5.8mm max. 7.9mm 10mm 8mm
SB10-100 6.4mm max. 9.5mm 12mm 10.3mm
SB13-100 8.0mm max. 12.7mm 15mm 10.3mm
SB14-100 11.4mm max. 14.3mm 17mm 10.3mm
SB16-100 12.7mm max. 15.9mm 18.6mm 10.3mm
SB22-100 17.5mm max. 22.2mm 24.2mm 11.5mm




(SB10-100)

SKU SB10-100
Brand Ionnic
