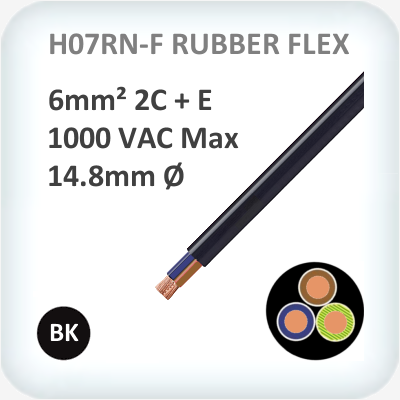

Rubber Flex 6mm² 2C + E 100m

RUB3G6-100

$1,031.40
In Stock

Length


Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50


Flexible Rubber Insulated Cable 6mm², 2 cores plus earth

Applications Submersible pumps, extension leads, fixed or mobile equipment

General

  • Cores insulated with ethylene propylene rubber
  • Cable sheath is chlorinated polyethylene rubber
  • Operating Temperature -25°C to +90°C
  • Voltage Rating 450/750V (VDE) & 600/1000V (IEC60092 protected and fixed wiring installation)
  • Water resistance to AD8, permanent submersion to 450m depth

Rubber Insulated Cable Dimensions
Part Number Conductors Contuctor Insulation Wall Sheath Wall Nominal OD Mass kg/km
RUB3G1.5 2C + E 1.5mm² 0.8mm 1.6mm 9.7mm 140
RUB3G2.5 2C + E 2.5mm² 0.9mm 1.8mm 11.4mm 200
RUB3G4 2C + E 4mm² 1.0mm 1.9mm 13.1mm 280
RUB3G6 2C + E 6mm² 1.0mm 2.1mm 14.8mm 375
RUB4G1.5 3C + E 1.5mm² 0.8mm 1.7mm 10.7mm 170
RUB4G2.5 3C + E 2.5mm² 0.9mm 1.9mm 12.6mm 250
RUB4G4 3C + E 4mm² 1.0mm 2.0mm 14.4mm 350
RUB4G6 3C + E 6mm² 1.0mm 2.3mm 16.7mm 470



(RUB3G6)

Class 5 plain annealed copper conductors

BS EN 50525-2-21 (BS6007,BS7919), BS6883, IEC60092-353

SKU RUB3G6
