FP110 High Temp Automotive Wiring Harness Tape
FP110
$2.42
In Stock
Notify me when back in stock

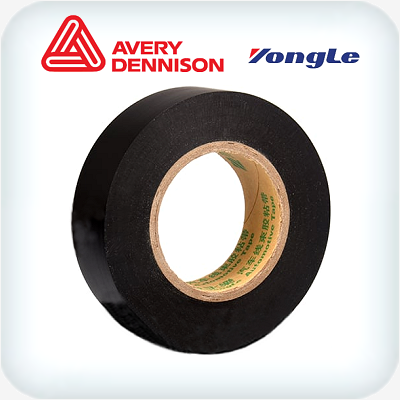

FP110 Automotive wire harness tape 0.11mm x 19mm x 20m
Product Description
PVC electrical film made of high-quality polymer plasticisers, coated with high-performance pressure sensitive adhesive
Product Features
- Easy to wrap and terminate by hand
- Chemical resistant
- Flame retardant
- Wide application and operating temperature range -25°C to +125°C
- Excellent elasticity for conformability
(FP110)
Typical Data/Physical Properties
| Properties | Typical Value | Test Method |
| Total Thickness | 0.110 ± 0.02mm | EN 1942 |
| Tensile Strength | ≥16 N/cm | ISO 29864 |
| Elongation at Break | ≥150% | ISO 29864 |
| Adhesive Strength - to steel | ≥1.5 N/cm | ISO 29862 |
| Adhesive Strength - to backing | ≥1.5 N/cm | ISO 29862 |
| Unwind Force | 1.5~4.0 N/cm | EN 1944 |
| Flammability | Self-extinguishing | ISO 3795 |
| Dielectric Strength | ≥40 kV/mm | IEC 60454 |
| Temperature Rating | -25 to 125°C | GMW 16740 |
Storage and shelf life
The shelf life of the product is two years when stored at 20-30°C, max 65% relative humidity and out of direct sunlight, in original packaging.
| SKU | FP110 |
| Brand | Avery Dennison Yongle |
