Fibreglass Braid & Silicone Sleeve 10mm ID 10m
FGR10-BK-10M
$27.66
Sold Out - Backorder Available
Notify me when back in stock

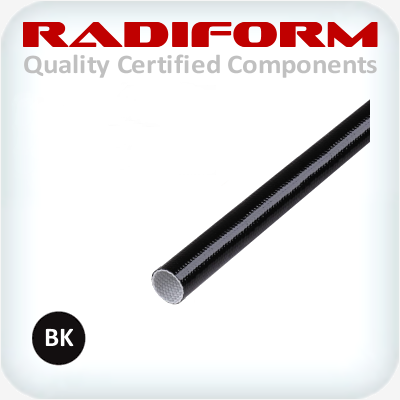

Fibreglass Silicone Rubber Sleeve 10mm Inside Diameter 10m Pack
Braided non-alkali fibreglass tubular weave, sheathed and bonded with silicone resin
Applications:
Insulation protection for wiring or cabling from high temperatures and medium voltages to 1.5kV
General:
- Flexible and compliant
- Abraision resistant
- RoHS & Reach
- Flame retardent to VW-1 UL1441
| Fibreglass Braid and Silicone Sleeve Dimensions | |||||
| Part Number | Inside Ø | Inside Ø Tolerance | Min. Wall | ||
| FGR4.0-BK | 4mm | +0.3 -0.1mm | ≥0.25mm | ||
| FGR6.0-BK | 6mm | +0.4 -0.1mm | ≥0.30mm | ||
| FGR8.0-BK | 8mm | +0.4 -0.1mm | ≥0.30mm | ||
| FGR10-BK | 10mm | +0.5 -0.2mm | ≥0.40mm | ||
| FGR12-BK | 12mm | +1.0 -1.0mm | ≥0.40mm | ||
| FGR15-BK | 15mm | +1.0 -1.0mm | ≥0.40mm | ||
| FGR20-BK | 20mm | +1.0 -1.0mm | ≥0.40mm | ||
| FGR25-BK | 25mm | +1.0 -1.0mm | ≥0.45mm | ||
(FGR10-BK-10M)
| Fibreglass Braid and Silicone Sleeve Specifications | |||
| Operating Temperature | -40°C to +200°C | ||
| Thermal Ageing | +250°C 24h (No Crack) | ||
| Cold Bend | (No Crack) | ||
| Vertical Flame Test | VW-1 | ||
| Volume Resistivity | ≥1011 Ω·cm | ||
| SKU | FGR10-BK-10M |
| Brand | Radiform |
