Egis Dual Battery Relays Automatic 12 & 24VDC 160A

Egis Dual Battery Configurable Automatic Relays 12VDC & 24VDC, (8-18VDC & 16-36VDC)

Applications
Idea for dual battery systems

Features

• Configurable settings via onboard DIP switches
• Dynamic voltage sensing technology
• User selectable on and off voltage points
• Start assist function
• Optional under voltage lockout
• Operational current draw - E7610 12V 340mA, E7610-24 24V 170mA
• Ultra low off-state 1.3mA power consumption
• LED status indicator
• Robust construction
• M6 Stainless steel terminals
• Supplied with 2x terminal insulators, 4x mounting screws and 1x 4 pin Molex connector with 110mm flying leads
• Environmentally sealed to IP64
• 4 Year warranty
• Made in North America

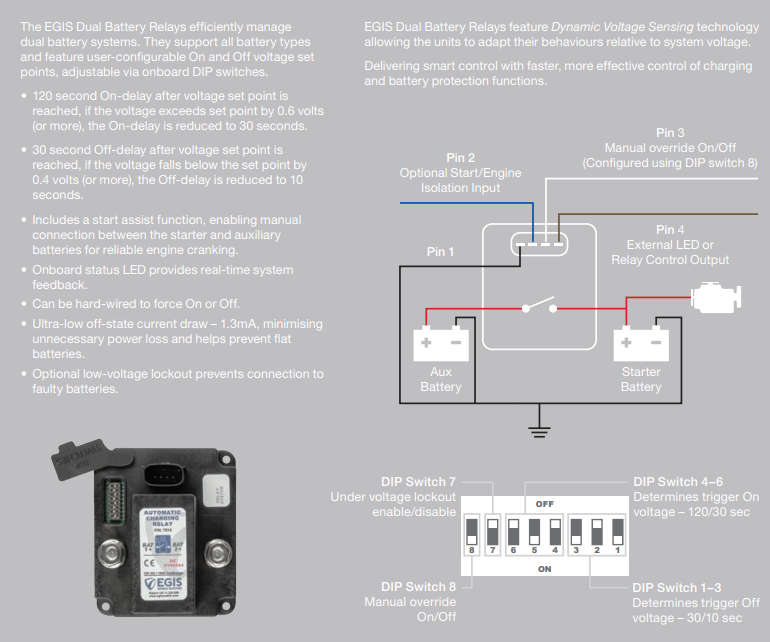

Application Example

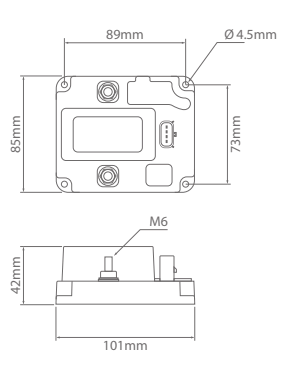

Dimensions
