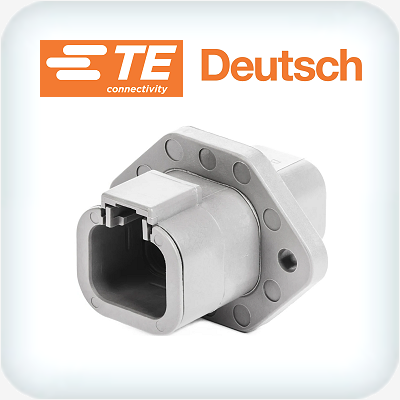

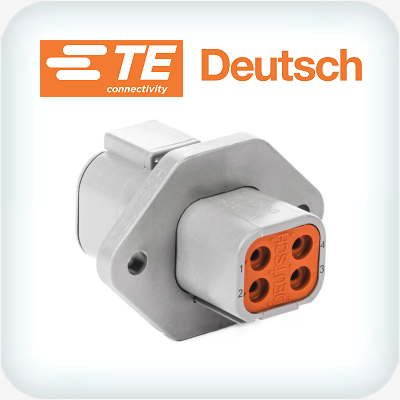

DTP04-4P-L012 4 Way Flanged Receptacle Housing
DTP04-4P-L012
$14.21
In Stock
Notify me when back in stock
DTP04-4P-L012 4 way flanged receptacle housing only - Wedge and contacts not included
Required
| Quantity | Contact Options |
| 4 | DTP & DTHD Pin Contact #12 2.08 to 3.31mm² Nickel Plated PN 0460-204-12141 |
| DTP & DTHD Pin Contact #12 2.08 to 3.31mm² Gold Plated PN 0460-202-16131 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge |
| 1 | 4 Way Receptacle Orange Wedge PN WP-4P |
Optional Accessories
| Flange Gasket |
| 4 Way Flanged Receptacle Gasket PN DTP4P-L012-GK |

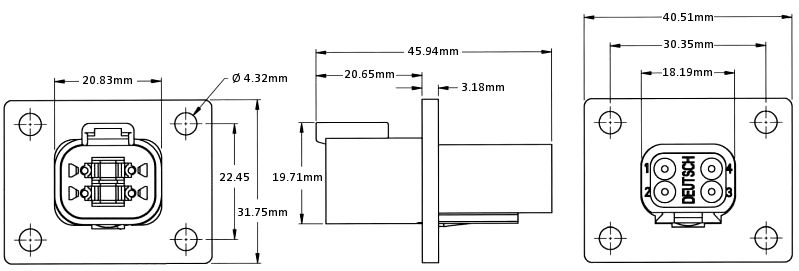

Dimensions
(DTP04-4P-L012)
| Deutsch DTP Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au or Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 25A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Millivolt Drop @ 25A | ≤100mV |
| SKU | DTP04-4P-L012 |
| Brand | Deutsch |
