DTM12-2 Kit 12 Way 0.75-1.3mm² Ni Plated Contacts
DTM12-2
$50.83
In Stock
Notify me when back in stock

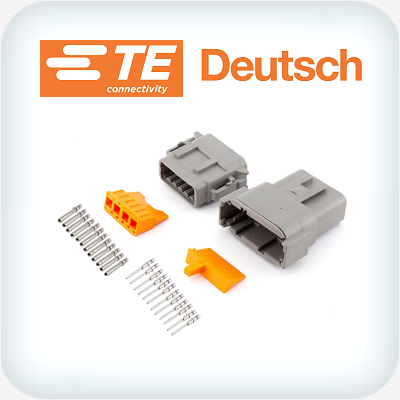

DTM12-2 Kit 12 Way Nickel Plated Contacts
- Contact current rating 7.5A
- Conductor area 0.75 to 1.3mm²
- Recomended insulation strip 3.9 to 5.5mm
- Wire insulation outside diameter range for effective rear seal 1.35 to 3.05mm
Kit Contents
| Recepticle | Wedge | Plug | Wedge | Contacts |
| 1x DTM04-12P | 1x WM-12P | 1x DTM06-12S | 1x WM-12S | 12x Nickel Plated Pin 0460-010-20141 |
| 12x Nickel Plated Socket 0462-005-20141 |
Applications
Deutsch DTM connectors are ideal for automotive and marine applications and commonly used for data transmission and for critical electronic circuits.
Features
- Wire-to-Wire Connection
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
| Number of Contacts |
DTM Plug | DTM Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 27.56mm | 12.90mm | 12.07mm | 41.15mm | 16.21mm | 16.54mm |
| 3 | 27.56mm | 14.00mm | 16.26mm | 41.15mm | 16.21mm | 20.73mm |
| 4 | 30.10mm | 17.65mm | 15.24mm | 43.69mm | 19.61mm | 19.20mm |
| 6 | 30.10mm | 20.75mm | 15.24mm | 43.69mm | 23.80mm | 19.20mm |
| 8 | 30.10mm | 15.24mm | 31.62mm | 43.69mm | 22.22mm | 31.62mm |
| 12 | 30.10mm | 15.24mm | 40.01mm | 43.69mm | 22.22mm | 40.01mm |
(DTM12-2)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Flame Test | 20mm Flame UL-94 |
| Current Rating #20 Pin | ≥7.5A @ 125°C |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 30N |
| Insulation Resistance @ 25°C | 1000 M ohm |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| SKU | DTM12-2 |
| Brand | Deutsch |
| Shipping Weight | 6.3000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.260m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.065000000m3 |
