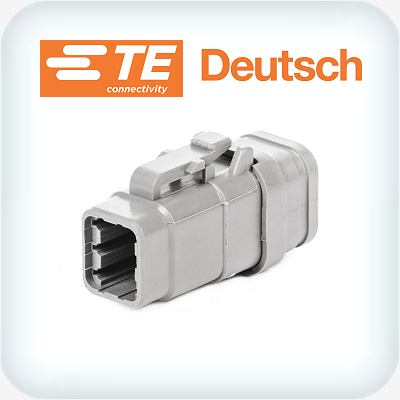

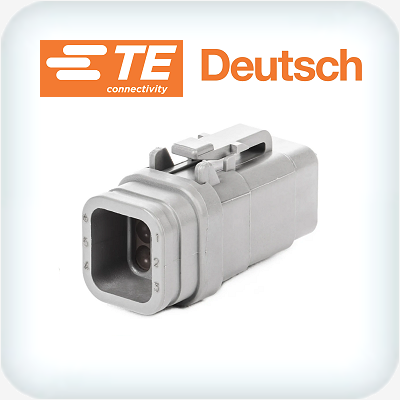

DTM06-6S-E007 HSA 6 Way Plug Housing
DTM06-6S-E007
$4.09
In Stock
Notify me when back in stock
DTM06-6S-E007 HSA, (Heat Shrink Adaptor), 6 Way Plug Housing
Features
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
| Number of Contacts |
DTM Plug | DTM Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 27.56mm | 12.90mm | 12.07mm | 41.15mm | 16.21mm | 16.54mm |
| 3 | 27.56mm | 14.00mm | 16.26mm | 41.15mm | 16.21mm | 20.73mm |
| 4 | 30.10mm | 17.65mm | 15.24mm | 43.69mm | 19.61mm | 19.20mm |
| 6 | 30.10mm | 20.75mm | 15.24mm | 43.69mm | 23.80mm | 19.20mm |
| 8 | 30.10mm | 15.24mm | 31.62mm | 43.69mm | 22.22mm | 31.62mm |
| 12 | 30.10mm | 15.24mm | 40.01mm | 43.69mm | 22.22mm | 40.01mm |
(DTM06-6S-E007)
| Deutsch DTM Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Flame Test | 20mm Flame UL-94 |
| Current Rating #20 Pin | 7.5A @ 125°C |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 30N |
| Insulation Resistance @ 25°C | 1000 M ohm |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| SKU | DTM06-6S-E007 |
| Brand | Deutsch |
