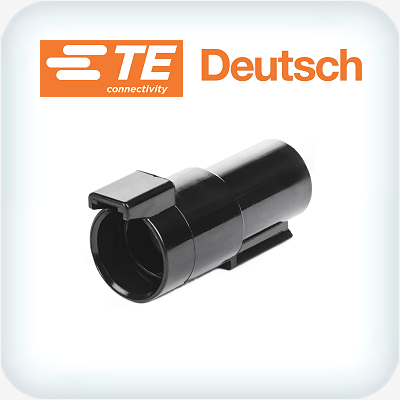

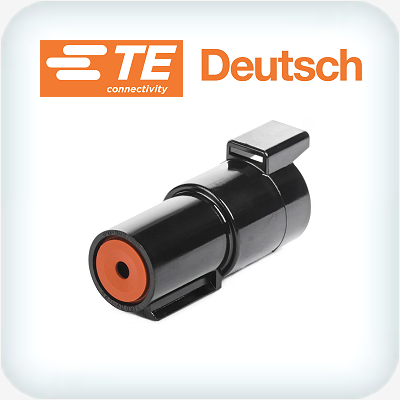

DTHD04-1-8P Receptacle Housing 60A
DTHD04-1-8P
$7.20
In Stock
Notify me when back in stock
DTHD04-1-8P Receptacle Housing 60A
Features
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
| Contact Size |
DTHD Plug | DTHD Receptacle | ||||
| A | B | C | D | E | F | |
| 12 | 38.05mm | 19.58mm | 14.48mm | 52.53mm | 21.59mm | 18.08mm |
| 8 | 38.05mm | 21.87mm | 16.76mm | 52.53mm | 23.88mm | 20.32mm |
| 4 | 38.05mm | 27.33mm | 22.23mm | 52.53mm | 29.72mm | 26.54mm |
(DTHD04-1-8P)
| Deutsch DTHD #8 Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 60A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 60A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| SKU | DTHD04-1-8P |
| Brand | Deutsch |
