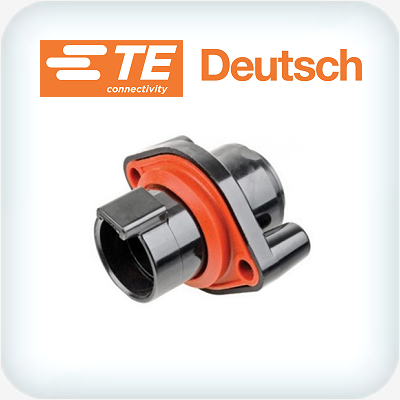

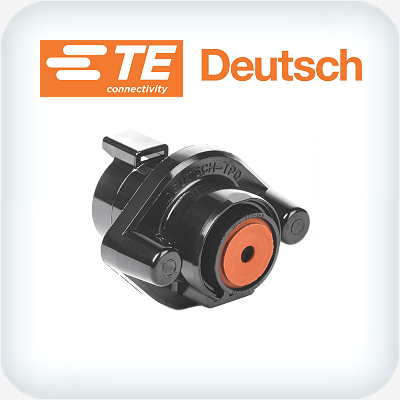

DTHD04-1-4P-L009 External Flange Mount 100A
DTHD04-1-4P-L009
$20.79
In Stock
Notify me when back in stock
DTHD04-1-4P-L009 External Flange Mount 100A
Features
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C

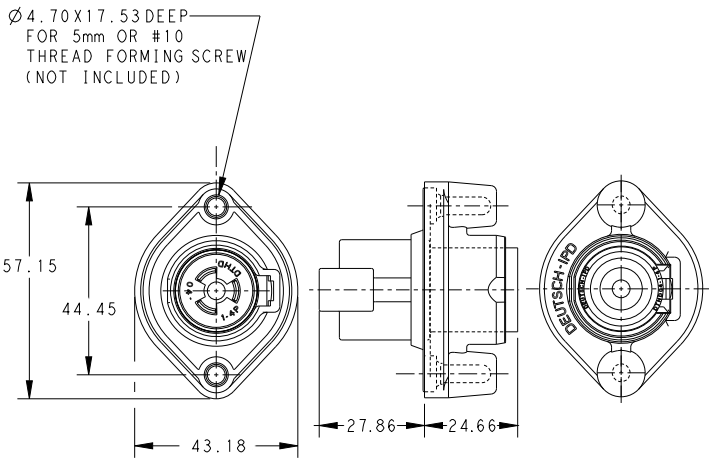

Dimensions

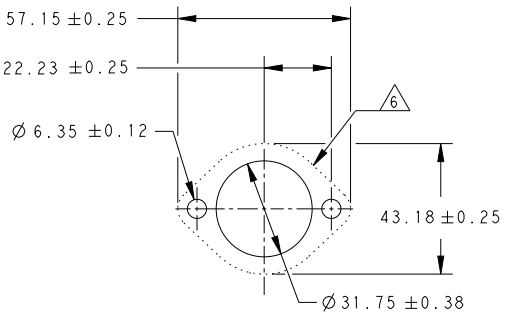

Panel Cut Out Dimensions
(DTHD04-1-4P-L009)
| Deutsch DTHD #4 Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating | 100A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 100A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| SKU | DTHD04-1-4P-L009 |
| Brand | Deutsch |
