DT8-1-E008 Kit HSA 8 Way 1.0-2.0mm² Ni Plated Contacts
DT8-1-E008
$32.44
In Stock
Notify me when back in stock

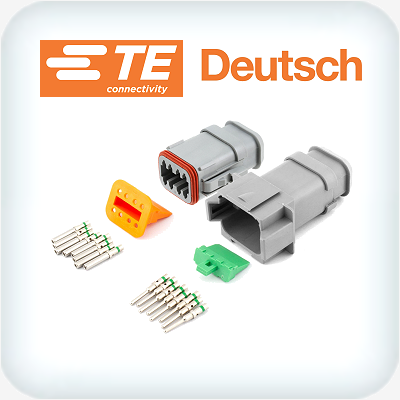

DT8-1-E008 Kit with Heat Shrink Adaptors 8 Way 1.0-2.0mm² Ni Plated Contacts
- Contact current rating 13A
- Conductor area 1.0 to 2.0mm²
- Recomended insulation strip 6.4 to 8mm
- Wire insulation outside diameter range for effective rear seal 2.23 to 3.68mm
Kit Contents
| House | Wedge | Contacts |
1x Receptacle DT04-08PA-E008 |
1x W8P |
8x Nickel Plated Pin 0460-215-16141 |
| 1x Plug DT06-08SA-E008 |
1x W8S |
8x Nickel Plated Socket 0462-209-16141 |
Applications
Versatile and reliable, DT connectors are ideal for automotive and marine applications
Commonly used for medium current circuits to 13A in harsh environmental conditions
Features
- Wire-to-Wire Connection
- Integrated Locking Mechanism
- Sealed to IP68 (When all contacts populated and connectors are mated)
- Operating Temperature of -55°C to +125°C
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 28.4mm | 15.95mm | 15.01mm | 43.38mm | 17.02mm | 17.15mm |
| 3 | 28.4mm | 23.72mm | 18.23mm | 43.13mm | 24.71mm | 21.13mm |
| 4 | 30.94mm | 18.39mm | 18.19mm | 45.92mm | 19.71mm | 20.83mm |
| 6 | 30.94mm | 22.63mm | 18.19mm | 45.92mm | 24.16mm | 20.83mm |
| 8 | 30.91mm | 19.71mm | 37.21mm | 45.67mm | 25.40mm | 36.45mm |
| 12 | 30.94mm | 18.19mm | 40.56mm | 45.92mm | 22.25mm | 40.56mm |
(DT8-1-E008)
| SKU | DT8-1-E008 |
| Brand | Deutsch |
