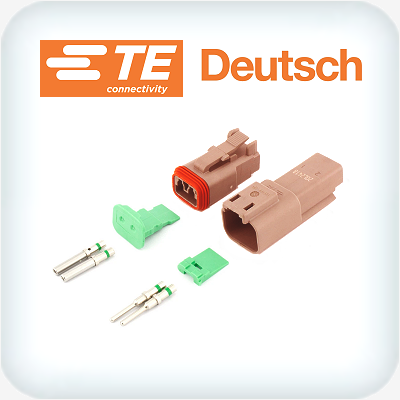

DT2-1 Kit 2 Way 1.0-2.0mm² Ni Contacts Brown
DT2-1-BRN
$7.74
In Stock
Notify me when back in stock
DT2-1 Kit 2 Way Nickel Plated Contacts Green Band Brown Housing
- Contact current rating 13A
- Conductor area 1.0 to 2.0mm²
- Recommended insulation strip 6.4 to 8mm
- Wire insulation outside diameter range for effective rear seal 2.23 to 3.68mm
Kit Contents
| Housing | Wedge | Contacts |
1x Receptacle DT04-2P-TN09 |
1x W2P |
2x Nickel Plated Pin PN 0460-215-16141 |
| 1x Plug DT06-2S-TN09 |
1x W2S-P012 |
2x Nickel Plated Socket PN 0462-209-16141 |
Receptacle Optional Accessories
| Cavity Plug, Backshell, Boot, & Mounting Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT04-2P Receptacle Backshell Straight Suits NC8,10,&12 PN 1011-257-0205 |
| DT04-2P Receptacle Backshell 90° Suits NC8,10,&12 PN 1011-258-0205 |
| DT04-2P Receptacle Boot Plastisol Grey 65mm PN DT2P-BT |
| DT04-2P Receptacle Boot Plastisol Black 65mm PN DT2P-BT-BK |
| DT04-2P Receptacle Boot Plastisol Black 120mm PN DTB2P |
| DT Receptacle Mount Plastic M5 Fits All Except 8 Way PN 1011-026-0205 |
| DT Receptacle Mount Stainless M11 Fits All Except 8 Way PN 1027-003-1200 |
| DT Receptacle Mount Stainless M13 Fits All Except 8 Way PN 1027-005-1200 |
| DT Receptacle Side Mount Zinc M11 Fits All Except 8 Way PN 1027-008-1200 |
| DT Receptacle Side Mount Zinc M13 Fits All Except 8 Way PN 1027-009-1200 |
Plug Optional Accessories
| Cavity Plug, Backshell, Boot, & Dust Cover Options |
| DT #16 & DTP #12 Cavity Plug PN 114017 |
| DT06-2S Plug Backshell Straight Suits NC8,10,&12 PN 1011-255-0205 |
| DT06-2S Plug Backshell 90° Suits NC8,10,&12 PN 1011-256-0205 |
| DT06-2S Plug Boot Plastisol Grey 65mm PN DT2S-BT |
| DT06-2S Plug Boot Plastisol Black 120mm PN DTB2S |
| DT06-2S Thermoplastic Latched Dust Cover M5 Lug PN 1011-344-0205 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 28.4mm | 15.95mm | 15.01mm | 43.38mm | 17.02mm | 17.15mm |
| 3 | 28.4mm | 23.72mm | 18.23mm | 43.13mm | 24.71mm | 21.13mm |
| 4 | 30.94mm | 18.39mm | 18.19mm | 45.92mm | 19.71mm | 20.83mm |
| 6 | 30.94mm | 22.63mm | 18.19mm | 45.92mm | 24.16mm | 20.83mm |
| 8 | 30.91mm | 19.71mm | 37.21mm | 45.67mm | 25.40mm | 36.45mm |
| 12 | 30.94mm | 18.19mm | 40.56mm | 45.92mm | 22.25mm | 40.56mm |
(DT2-1-BRN)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT2-1-BRN |
| Brand | Deutsch |
