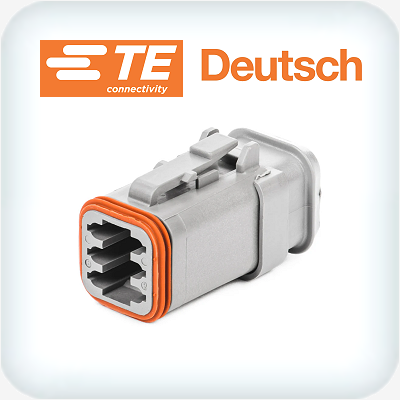

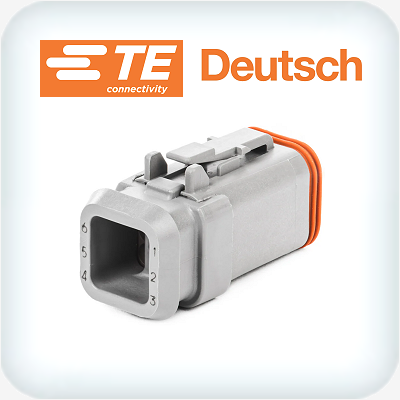

DT06-6S-E008 6 Way Heat Shrink Plug Housing

Free Delivery Australia wide for all orders - Minimum invoice value $50

DT06-6S-E008 6 Way Heat Shrink Plug Housing
DT connectors with a "E008" suffix have a housing designed for terminating adhesive lined heat shrink

Required

Quantity	Contact Options
6	DT Socket Contact #16 0.5 to 1.5mm² Nickel Plated PN 0462-201-16141
	DT Socket Contact #16 0.5 to 1.5mm² Gold & Nickel Plated PN 0462-201-16131
	DT Socket Contact #16 1.0 to 2.0mm² Nickel Plated PN 0462-209-16141
	DT Socket Contact #16 1.0 to 2.0mm² Gold & Nickel Plated PN 0462-201-16131
If required	DT Series Cavity Plug PN 114017
Quantity	Wedge Options
1	6 Way Plug Standard Orange Wedge PN W6S
1	6 Way Plug Enhanced Seal Green Wedge PN W6S-P012

Optional Accessories

Dust Cover

DT06-6S Thermoplastic Latched Dust Cover M5 Lug PN 1011-347-0605

Tools

#16 Machined Contact Crimp Tool PN DET16

Dimensions

Number of Contacts	DT Plug			DT Receptacle
Number of Contacts	A	B	C	D	E	F
2	40.92mm	15.77mm	15.01mm	57.18mm	17.02mm	17.15mm
3	40.67mm	24.60mm	20.23mm	55.40mm	24.71mm	21.13mm
4	43.21mm	19.74mm	20.83mm	48.32mm	19.71mm	20.83mm
6	43.21mm	24.03mm	20.68mm	58.19mm	24.16mm	20.83mm
8	44.25mm	22.15mm	37.21mm	59.00mm	23.88mm	36.45mm
12	43.21mm	20.83mm	40.56mm	56.29mm	22.25mm	40.56mm

(DT06-6S-E008)

Deutsch DT Series Connectors
Property	Unit
Housings	Thermoplastic
Seals	Silicone Rubber
Wedge Locks	Thermoplastic
Contacts	Au & Ni Plated Cu Alloy
Dielectric Withstanding Voltage	1500VAC
Current Rating #16 Pin	13A
ARC Resistance	ASTM-D-495
Submersion & Dust	IP68
Vibration 20g's 10Hz to 2kHz	Pass
Operating Temperatures at 13A	- 55°C to +125°C
Contact Retention	33Nm
Insulation Resistance @ 25°C	1000 m
Rear Seal to Wire Insulation	2.3mm to 3.6mm
Millivolt Drop @ 13A	≤100mV

SKU	DT06-6S-E008
Brand	Deutsch
