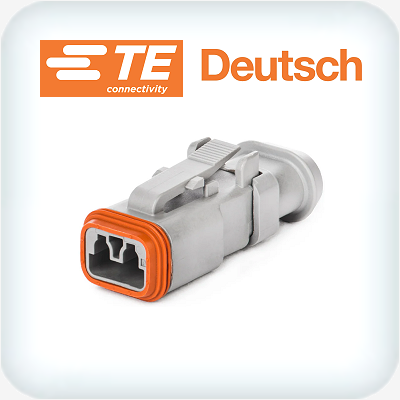

DT06-2S-E008 2 Way Heat Shrink Plug Housing
DT06-2S-E008
$3.72
In Stock
Notify me when back in stock
DT06-2S-E008 2 Way Heat Shrink Plug Housing

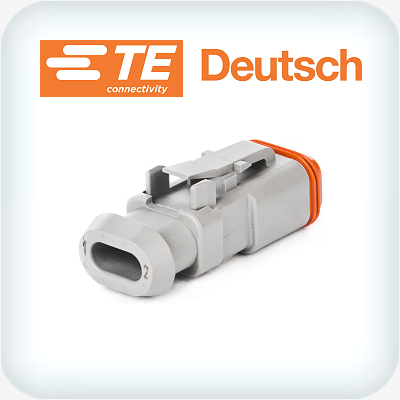

DT connectors with a "E008" suffix have a housing designed for terminating heat shrink
Required
| Quantity | Contact Options |
| 2 | DT Socket Contact #16 0.5 to 1.5mm² Nickel Plated PN 0462-201-16141 |
| DT Socket Contact #16 0.5 to 1.5mm² Gold & Nickel Plated PN 0462-201-16131 |
|
| DT Socket Contact #16 1.0 to 2.0mm² Nickel Plated PN 0462-209-16141 |
|
| DT Socket Contact #16 1.0 to 2.0mm² Gold & Nickel Plated PN 0462-201-16131 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge |
| 1 | 2 Way Plug Enhanced Seal Green Wedge PN W2S-P012 |
| 2 Way A Keyed Grey Wedge PN W2SA |
Optional Accessories
| Heat Shrink & Dust Cover Options |
| RDW18 Adhesive Lined Heat Heat Shrink 1.2m |
| RSFR-DR19.1 Diesel Resistant Heat Shrink 1.2m |
| DT06-2S Thermoplastic Latched Dust Cover M5 Lug PN 1011-344-0205 |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 40.92mm | 15.77mm | 15.01mm | 57.18mm | 17.02mm | 17.15mm |
| 3 | 40.67mm | 24.60mm | 20.23mm | 55.40mm | 24.71mm | 21.13mm |
| 4 | 43.21mm | 19.74mm | 20.83mm | 48.32mm | 19.71mm | 20.83mm |
| 6 | 43.21mm | 24.03mm | 20.68mm | 58.19mm | 24.16mm | 20.83mm |
| 8 | 44.25mm | 22.15mm | 37.21mm | 59.00mm | 23.88mm | 36.45mm |
| 12 | 43.21mm | 20.83mm | 40.56mm | 56.29mm | 22.25mm | 40.56mm |
(DT06-2S-E008)
| Deutsch DT Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au & Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 2.3mm to 3.6mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT06-2S-E008 |
| Brand | Deutsch |
