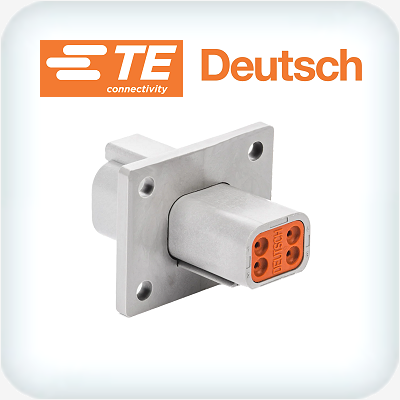

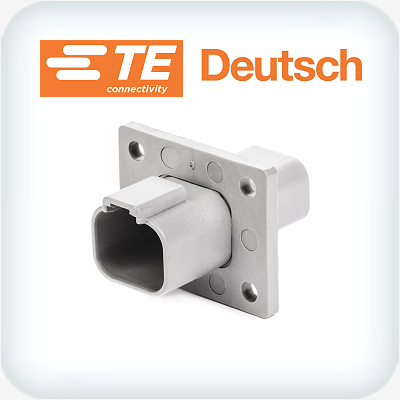

DT04-4P-L012 4 Way Flanged Receptacle Housing
DT04-4P-L012
$6.08
In Stock
Notify me when back in stock
DT04-4P-L012 4 Way Flanged Housing
Required
| Quantity | Contact Options |
| 4 | DT Pin Contact #16 0.5 to 1.5mm² Nickel Plated PN 0460-202-16141 |
| DT Pin Contact #16 0.5 to 1.5mm² Gold Plated PN 0460-202-16131 |
|
| DT Pin Contact #16 1.0 to 2.0mm² Nickel Plated PN 0460-215-16141 |
|
| DT Pin Contact #16 1.0 to 2.0mm² Gold Plated PN 0460-215-1631 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge |
| 1 | 4 Way Receptacle Green Wedge PN W4P |
Optional Accessories
| Dust Cap, & Gasket |
| DT04-4P 4 Way Receptacle Dust Cap Plastisol Grey PN DT4P-DC |
| DT 4 Way Flange Mount Gasket PN DT4P-L012-GKT |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Dimensions
(DT04-4P-L012)
| SKU | DT04-4P-L012 |
| Brand | Deutsch |
