DT04-4P-C015 4 Way E Seal Receptacle Housing
DT04-4P-C015
$2.20
In Stock
Notify me when back in stock

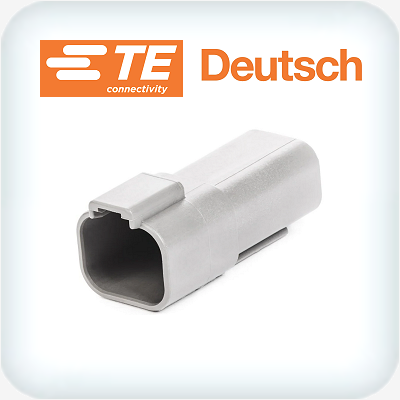

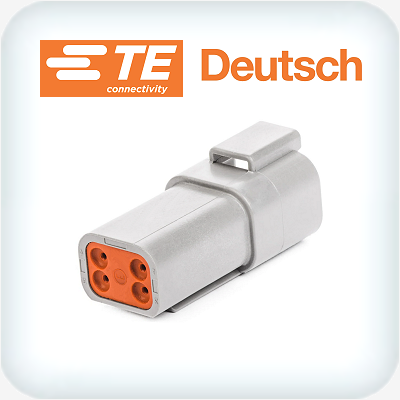

DT04-4P-C015 4 Way E Seal Receptacle Housing
DT connectors with a "C015" suffix have an enhanced rear seal to take a smaller diameter wire insulation range of 1.35mm to 3.05mmØ compared to the standard seal range of 2.3mm to 3.6mmØ
Required
| Quantity | Contact Options |
| 4 | DT Pin Contact #16 0.5 to 1.0mm² Nickel Plated PN 0460-202-16141 |
| DT Pin Contact #16 0.5 to 1.0mm² Gold Plated PN 0460-202-16131 |
|
| DT Pin Contact #16 1.0 to 2.0mm² Nickel Plated PN 0460-215-16141 |
|
| DT Pin Contact #16 1.0 to 2.0mm² Gold Plated PN 0460-215-1631 |
|
| If required | DT Series Cavity Plug PN 114017 |
| Quantity | Wedge |
| 1 | 4 Way Receptacle Green Wedge PN W4P |
Optional Accessories
| Backshell, Boot, Dust Cap, & Mount Options |
| DT04-4P Receptacle Backshell Straight Suits NC8,10,&12 PN 1011-265-0405 |
| DT04-4P Receptacle Backshell 90° Suits NC8,10,&12 PN 1011-266-0405 |
| DT04-4P Receptacle Boot Plastisol Grey 65mm PN DT4P-BT |
| DT04-4P Receptacle Boot Plastisol Black 65mm PN DT4P-BT-BK |
| DT04-4P Receptacle Boot Plastisol Black 120mm PN DTB4P |
| DT04-4P 4 Way Receptacle Dust Cap Plastisol Grey PN DT4P-DC |
| DT Receptacle Mount Plastic M5 Fits All Except 8 Way PN 1011-026-0205 |
| DT Receptacle Mount Stainless M11 Fits All Except 8 Way PN 1027-003-1200 |
| DT Receptacle Mount Stainless M13 Fits All Except 8 Way PN 1027-005-1200 |
| DT Receptacle Side Mount Zinc M11 Fits All Except 8 Way PN 1027-008-1200 |
| DT Receptacle Side Mount Zinc M13 Fits All Except 8 Way PN 1027-009-1200 |
| Tools |
| #16 Machined Contact Crimp Tool PN DET16 |
Dimensions
| Number of Contacts |
DT Plug | DT Receptacle | ||||
| A | B | C | D | E | F | |
| 2 | 28.4mm | 15.95mm | 15.01mm | 43.38mm | 17.02mm | 17.15mm |
| 3 | 28.4mm | 23.72mm | 18.23mm | 43.13mm | 24.71mm | 21.13mm |
| 4 | 30.94mm | 18.39mm | 18.19mm | 45.92mm | 19.71mm | 20.83mm |
| 6 | 30.94mm | 22.63mm | 18.19mm | 45.92mm | 24.16mm | 20.83mm |
| 8 | 30.91mm | 19.71mm | 37.21mm | 45.67mm | 25.40mm | 36.45mm |
| 12 | 30.94mm | 18.19mm | 40.56mm | 45.92mm | 22.25mm | 40.56mm |
(DT04-4P-C015)
| Deutsch DT C015 E Seal Series Connectors | |
| Property | Unit |
| Housings | Thermoplastic |
| Seals | Silicone Rubber |
| Wedge Locks | Thermoplastic |
| Contacts | Au or Ni Plated Cu Alloy |
| Dielectric Withstanding Voltage | 1500VAC |
| Current Rating #16 Pin | 13A |
| ARC Resistance | ASTM-D-495 |
| Submersion & Dust | IP68 |
| Vibration 20g's 10Hz to 2kHz | Pass |
| Operating Temperatures at 13A | - 55°C to +125°C |
| Contact Retention | 33Nm |
| Insulation Resistance @ 25°C | 1000 m |
| Rear Seal to Wire Insulation | 1.35mm to 3.05mm |
| Millivolt Drop @ 13A | ≤100mV |
| SKU | DT04-4P-C015 |
| Brand | Deutsch |
