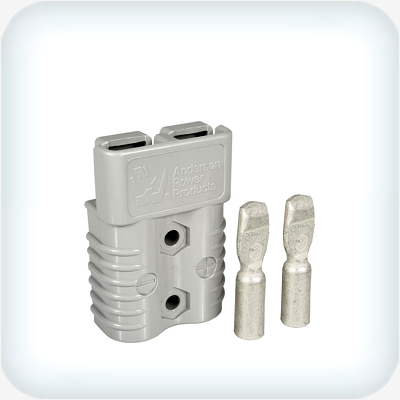

Anderson SB175 Grey 175 Amp 1/0AWG Contacts
6325G1
$22.66
In Stock
Notify me when back in stock
Anderson SB175 Plug Kit 2 Way GRY 175 Amp 1/0AWG Contacts
Applications
DC power connections, battery chargers and jump/boost starters
Features
- UL Rated for hot plugging up to 175 Amps
- UL Rated to 600V
- Genderless (flip 180° to insert)
- Keyed housings prevent incorrect mating
| Anderson SB175 - All Dimensions mm | |||||||
| A | B | C | D | E | F | G | H |
| 39.7 | 28.6 | 26.5 | 53.1 | 6.6 | 79.5 | 25.4 | 133.6 |
(6325G1)
| Anderson Power Products 6325G1 | |
| Property | Unit |
| UL Current Rating | 120A (6AWG) |
| UL Voltage Rating AC or DC | 600V |
| Contact Wire To | 6AWG |
| Contact Wire To (metric) | 13.3mm² |
| Maximum Wire Insulation | 11.2mm Ø |
| Average Contact Resistance (milliohms) | 0.2 |
| Contact Retention Force | 50 lbf |
| No Load Contact/Disconnect Cycles | ≥10,000 |
| Hot Plug Contact/Disconnect Cycles | ≥250 (75A 120V) |
| Operating Temperature Range | - 20°C to +105°C |
| Flammability - Housing Material | UL94 V-0 |
| SKU | 6325G1 |
| Brand | Anderson Power Products |
