Anderson SB120 Grey 120A 2AWG Contacts

6800G1

$15.90
In Stock
Buy In Packed Quantities and Save!
Buy 10 to 24: Pay $15.25
Buy 25 to 49: Pay $14.85
Buy 50 or more: Pay $13.90


Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50

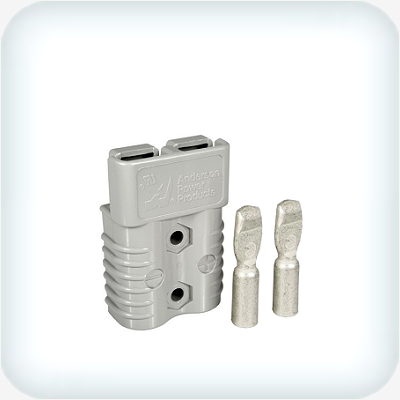

Anderson SB120 Plug Kit 2 Way Grey 120A 2AWG Contacts

Applications
DC power connections, battery chargers and jump/boost starters

Features

  • UL Rated for hot plugging up to 120 Amps
  • UL Rated to 600V
  • Genderless (flip 180° to insert)
  • Keyed housings prevent incorrect mating


Anderson SB120 - All Dimensions mm
A B C D E F G H
35.8 19.1 22.2 44.5 5.1 63.5 20.6 104.6



(6800G1)





Anderson Power Products 6800G1
Property Unit
UL Maximum Current Rating (2AWG) 120A
UL Voltage Rating AC or DC 600V
Contact Wire To 2AWG
Contact Wire To (metric) 13.3mm²
Maximum Wire Insulation  15.24mm Ø
Average Contact Resistance (milliohms) 0.136
Contact Retention Force 50 lbf
No Load Contact/Disconnect Cycles 10,000
Hot Plug Contact/Disconnect Cycles 250 (60A 120V)
Operating Temperature Range - 20°C to +105°C
Flammability - Housing Material UL94 V-0



SKU 6800G1
Brand Anderson Power Products
