Anderson PP75 Black 75 Amp 6AWG Contact

1300G4

$2.80
In Stock
Buy In Packed Quantities and Save!
Buy 10 to 24: Pay $2.60
Buy 25 to 49: Pay $2.40
Buy 50 or more: Pay $2.25


Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50

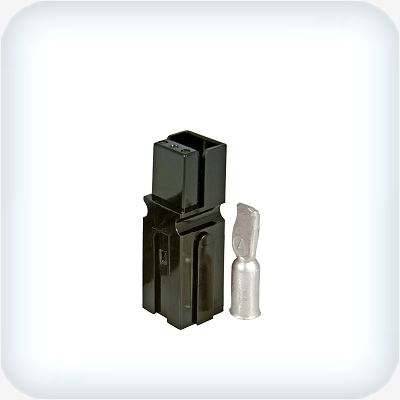

Anderson Power Pole PP75 Kit 1 Way Black 75 Amp 6AWG Contact

Applications
High current DC connectors for motor vehicles, input to power inverters, battery chargers, amateur radio transceivers, DC distribution and fuse panels

Features

  • Stackable modular contact housing
  • Genderless design
  • Low resistance
  • Hot plug to 75 Amps


Anderson PP75 - All Dimensions mm
A B C D E
15.9 15.9 47.9 81.3 17.0



(1300G4)





Anderson Powerpole PP75
Property Unit
UL 1977 Current Rating  120A
UL Voltage Rating AC or DC 600V
Contact Wire Range  16 to 6 AWG
Contact Wire Range (metric) 1.3 to 13.3mm²
Maximum Wire Insulation  11.1mm Ø
Average Contact Resistance (milliohms) 0.200
Contact Retention Force 50 lbf
No Load Contact/Disconnect Cycles 10,000
Hot Plug Contact/Disconnect Cycles 250 (50A 120V)
Operating Temperature Range - 20°C to +105°C
Flammability - Housing Material UL94 V-0



SKU 1300G4
Brand Anderson Power Products
