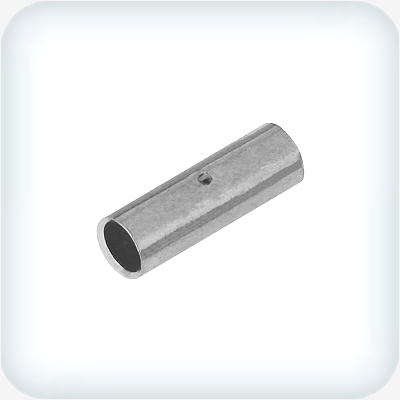

120mm² Copper Splice Link Per Unit
CS120
$5.80
In Stock
Notify me when back in stock
Copper Compression Link 120mm²
Features
- Copper Grade C11000
- 99.9% Copper Annealed and Tinned
- Maximum Oxygen Content 30ppm
- Operating Temperature Range -55°C to +155°C
- Terminate with Australian standard compression tooling only
| 120mm² Copper Links - All Dimensions mm | ||||||||||
| Part No. | Ent ID | Barrel L | ||||||||
| CS120 | 15.6 | 65 | ||||||||
(CS120)
| Material | Property | |||||
| Copper |
99.9% Pure Copper | |||||
| Oxygen 30ppm Maximum | ||||||
| Tensile Strength 205Mpa Minimum | ||||||
| Ductile Rating 40% | ||||||
| Final Metal State Fully Annealed | ||||||
| Electroplating | 99.9% Pure Tin (Other Lead & Antimony) | |||||
| Performance | Conformant Standard AS/NZS4325 Part 1 :1995 | |||||
| Conductivity | Total Conductivity 99.9% IACS | |||||
| Resistance | Total Resistance 1.72 micro-ohms per cm | |||||
| SKU | CS120 |
| Brand | HellermannTyton |
