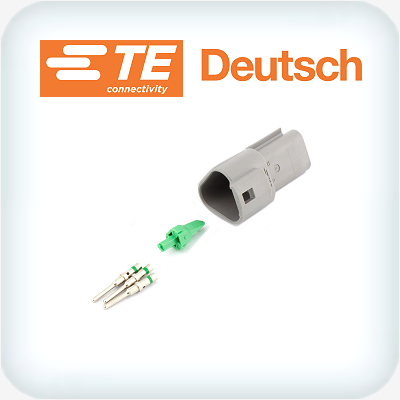

DT3MP-1 Half Kit 3 Way 1.0-2.0mm² Ni Contacts

DT3MP-1 Receptacle Half Kit 3 Way 1.0-2.0mm² Ni Plated Contacts

• Contact current rating 13A
• Conductor area 1.0 to 2.0mm²
• Recommended insulation strip 6.4 to 8mm
• Wire insulation outside diameter range for effective rear seal 2.23 to 3.68mm

Kit Contents

Recepticle	Wedge	Contacts
1x DT04-3P	1x W3P	3x Nickel Plated Pin PN 0460-215-16141

Optional Accessories

Cavity Plug, Backshell, Boot, & Mount Options

DT #16 & DTP #12 Cavity Plug PN 114017

DT04-3P Receptacle Backshell Straight Suits NC8,10,&12 PN 1011-261-0305

DT04-3P Receptacle Backshell 90° Suits NC8,10,&12 PN 1011-262-0305

DT04-3P Receptacle Boot Plastisol Grey 65mm PN DT3P-BT

DT04-3P Receptacle Boot Plastisol Black 65mm PN DT3P-BT-BK

DT04-3P Receptacle Boot Plastisol Black 120mm PN DTB3P

DT Receptacle Mount Plastic M5 Fits All Except 8 Way PN 1011-026-0205

DT Receptacle Mount Stainless M11 Fits All Except 8 Way PN 1027-003-1200

DT Receptacle Mount Stainless M13 Fits All Except 8 Way PN 1027-005-1200

DT Receptacle Side Mount Zinc M11 Fits All Except 8 Way PN 1027-008-1200

DT Receptacle Side Mount Zinc M13 Fits All Except 8 Way PN 1027-009-1200

Tools

#16 Machined Contact Crimp Tool PN DET16

Dimensions
